RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0419112 FOG LIGHT ASSEMBLY(for LED Fog Light) G

LIGHTING (EXT)  FOG LIGHT ASSEMBLY(for LED Fog Light)  INSPECTION


PROCEDURE

Hide 8121C 1.INSPECT FOG LIGHT LED (for Type A, for Type B, LH Side)

a.

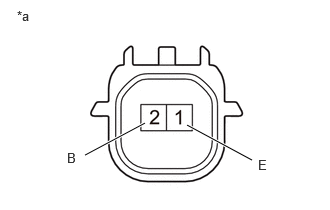

E463501C09
0.885,1.615 1.51,1.281 true 2.625,1.667 1.948,1.302 true 0.177,0.083 0.385,0.271 0.208,0.188 10 false *a 0.698,1.563 0.854,1.76 0.156,0.198 10 false B 2.688,1.635 2.844,1.833 0.156,0.198 10 false E
*a Component without harness connected
(Fog Light LED)


Check the illumination.

i.

Apply auxiliary battery voltage to the fog light LED and check that the light illuminates.

OK:
Tester Connection Specified Condition
Auxiliary battery positive (+) → Terminal-2(B) Fog Light LED illuminates
Auxiliary battery negative (-) → Terminal-1(E)


If the result is not as specified, replace the fog light LED.



Hide 8121C 2.INSPECT FOG LIGHT LED (for Type A, for Type B, LH Side)

a.
E463501C09
0.885,1.615 1.51,1.281 true 2.625,1.667 1.948,1.302 true 0.177,0.083 0.385,0.271 0.208,0.188 10 false *a 0.698,1.563 0.854,1.76 0.156,0.198 10 false B 2.688,1.635 2.844,1.833 0.156,0.198 10 false E
*a Component without harness connected
(Fog Light LED)


Check the illumination.

i.

Apply auxiliary battery voltage to the fog light LED and check that the light illuminates.

OK:
Tester Connection Specified Condition
Auxiliary battery positive (+) → Terminal-2(B) Fog Light LED illuminates
Auxiliary battery negative (-) → Terminal-1(E)


If the result is not as specified, replace the fog light LED.



Hide 3.INSPECT FOG LIGHT ASSEMBLY LH (for Off Road Package)

a.

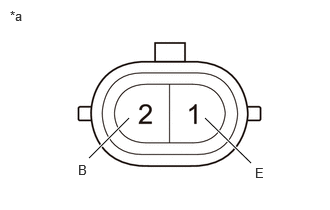

E458483C13
0.927,1.646 1.344,1.229 true 2.135,1.229 2.615,1.698 true 0.104,0.083 0.313,0.271 0.208,0.188 10 false *a 0.813,1.688 0.969,1.885 0.156,0.198 10 false B 2.656,1.719 2.813,1.917 0.156,0.198 10 false E
*a Component without harness connected
(Fog Light Assembly LH)


Check the illumination.

i.

Apply auxiliary battery voltage to the fog light assembly LH and check that the light illuminates.

OK:
Tester Connection Specified Condition
Auxiliary battery positive (+) → Terminal-2(B) Fog light assembly LH illuminates
Auxiliary battery negative (-) → Terminal-1(E)


If the result is not as specified, replace the fog light assembly LH.



Hide 4.INSPECT FOG LIGHT ASSEMBLY RH (for Off Road Package)

a.
E458483C13
0.927,1.646 1.344,1.229 true 2.135,1.229 2.615,1.698 true 0.104,0.083 0.313,0.271 0.208,0.188 10 false *a 0.813,1.688 0.969,1.885 0.156,0.198 10 false B 2.656,1.719 2.813,1.917 0.156,0.198 10 false E
*a Component without harness connected
(Fog Light Assembly RH)


Check the illumination.

i.

Apply auxiliary battery voltage to the fog light assembly RH and check that the light illuminates.

OK:
Tester Connection Specified Condition
Auxiliary battery positive (+) → Terminal-2(B) Fog light assembly RH illuminates
Auxiliary battery negative (-) → Terminal-1(E)


If the result is not as specified, replace the fog light assembly RH.
