SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(for GTMC Made) TERMINALS OF ECU

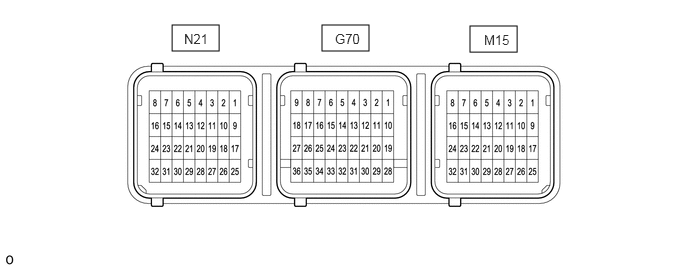

AIRBAG ECU ASSEMBLY
3.354,0.26 3.844,0.531
0.49,0.271
4.896,0.271 5.385,0.542
0.49,0.271
1.792,0.26 2.281,0.531
0.49,0.271
3.49,0.323 3.802,0.521
0.313,0.198
10
false
G70
5.042,0.333 5.354,0.531
0.313,0.198
10
false
M15
1.917,0.323 2.229,0.521
0.313,0.198
10
false
N21
| Terminal No. | Terminal Symbol | Destination |
|---|---|---|
|
*1: for HV Model *2: for 2WD *3: for 4WD |
||
| G70-3 | P- | Instrument panel passenger without door airbag assembly |
| G70-4 | P+ | Instrument panel passenger without door airbag assembly |
| G70-6 | D+ | Horn button assembly |
| G70-7 | D- | Horn button assembly |
| G70-8 | D2- | Horn button assembly (driver side squib 2nd step) |
| G70-9 | D2+ | Horn button assembly (driver side squib 2nd step) |
| G70-12 | DK- | Lower No. 1 instrument panel airbag assembly |
| G70-13 | DK+ | Lower No. 1 instrument panel airbag assembly |
| G70-23 | GSW3 | Telematics transceiver (w/ Telematics Transceiver) |
| G70-24*1 | GSW2 | Hybrid motor control inverter assembly*2
Inverter with converter assembly*3 |
| G70-25 | GSW | Main body ECU (multiplex network body ECU) |
| G70-26 | CAFH | CAN communication line |
| G70-27 | CAFL | CAN communication line |
| G70-28 | -SR | Front airbag sensor RH |
| G70-29 | +SR | Front airbag sensor RH |
| G70-30 | +SL | Front airbag sensor LH |
| G70-31 | -SL | Front airbag sensor LH |
| G70-32 | E2 | Ground |
| G70-33 | E1 | Ground |
| G70-36 | IGR | A/BAG-IGR fuse |
| N21-3 | PLR- | Rear seat outer belt assembly LH |
| N21-4 | PLR+ | Rear seat outer belt assembly LH |
| N21-5 | PL+ | Front seat outer belt assembly LH |
| N21-6 | PL- | Front seat outer belt assembly LH |
| N21-7 | ICL- | Curtain shield airbag assembly LH |
| N21-8 | ICL+ | Curtain shield airbag assembly LH |
| N21-15 | SFL- | Front seat airbag assembly LH |
| N21-16 | SFL+ | Front seat airbag assembly LH |
| N21-31 | BBL- | No. 2 side airbag sensor assembly LH |
| N21-32 | BBL+ | No. 2 side airbag sensor assembly LH |
| M15-1 | ICR+ | Curtain shield airbag assembly RH |
| M15-2 | ICR- | Curtain shield airbag assembly RH |
| M15-3 | PR- | Front seat outer belt assembly RH |
| M15-4 | PR+ | Front seat outer belt assembly RH |
| M15-5 | PRR+ | Rear seat outer belt assembly RH |
| M15-6 | PRR- | Rear seat outer belt assembly RH |
| M15-9 | SFR+ | Front seat airbag assembly RH |
| M15-10 | SFR- | Front seat airbag assembly RH |
| M15-25 | BBR- | No. 2 side airbag sensor assembly RH |
| M15-26 | BBR+ | No. 2 side airbag sensor assembly RH |
