RM36D0EC _58 Vehicle Interior _083102 SEAT _0419065 FRONT SEATBACK HEATER(for SFTM Made Power Seat) A

SEAT FRONT SEATBACK HEATER(for SFTM Made Power Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 87510N 1.INSTALL FRONT SEATBACK HEATER ASSEMBLY LH

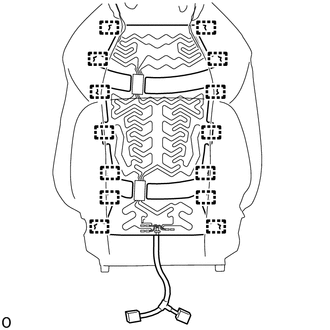

Using a tacker, install the front seatback heater assembly LH to the separate type front seatback cover with 14 new tack pins as shown in the illustration.

NOTICE:: Do not substitute other metal parts for tack pins.

Hide Display 71074S 2.INSTALL SEPARATE TYPE FRONT SEATBACK COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0083,

Hide Display 3.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0084,

Hide Display 71876G 4.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0085,

Hide Display 5.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0086,

Hide Display 71862 6.INSTALL FRONT SEAT INNER CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0088,

Hide Display 71812D 7.INSTALL FRONT SEAT CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0071,

Hide Display 71868A 8.INSTALL FRONT SEAT INNER NO. 1 CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419056,RM1000000029RM1_05_0072,

Hide Display 9.INSTALL FRONT SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>INSTALLATION202405,999999,_58,_083102,_0419056,RM100000002LTTG,

Hide Display 10. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202405,202409,_V1,_083041,_0402304,RM100000002LTUF,202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 11. PERFORM DIAGNOSTIC SYSTEM CHECK

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>DTC CHECK / CLEAR202405,202409,_58,_083100,_0694957,RM100000002LV48,202409,999999,_58,_083100,_0694957,RM100000002NSO1,

Hide Display 12.CHECK SRS WARNING LIGHT

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>OPERATION CHECK202405,202409,_58,_083100,_0694957,RM100000002LV45,202409,999999,_58,_083100,_0694957,RM100000002NSNY,

Hide Display 13.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM (for SFTM Made)>OPERATION CHECK202405,999999,_58,_083103,_0694953,RM100000002LUZA,

Hide Display 14.INSPECT FRONT POWER SEAT CONTROL SYSTEM

for HV Model:

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (for HV Model)>OPERATION CHECK202304,999999,_58,_083102,_0407492,RM1000000029D6D,

for Gasoline Model:

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (for Gasoline Model)>OPERATION CHECK202304,999999,_58,_083102,_0407266,RM1000000029D5N,

Hide Display 15.INSPECT SEAT HEATER SYSTEM

for HV Model:

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM (for HV Model)>OPERATION CHECK202004,999999,_58,_083102,_0407493,RM100000001MTIA,

for Gasoline Model:

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM (for Gasoline Model)>OPERATION CHECK202004,999999,_58,_083102,_0407267,RM100000001MTKH,
