RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0419112 FOG LIGHT ASSEMBLY(for LED Fog Light) A

LIGHTING (EXT)  FOG LIGHT ASSEMBLY(for LED Fog Light)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 8121C 1.REMOVE FOG LIGHT LED (for Type A, Type B)

a.
E511657C01
0,0 0,0 false
V113147

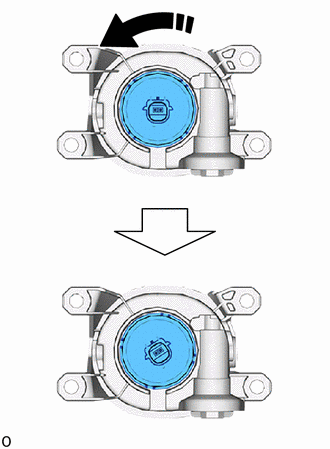

Turn in this Direction


Turn the fog light LED counterclockwise until the socket stops and remove it.
