EXTERIOR PANELS / TRIM  FRONT BUMPER(for Type B)  DISASSEMBLY

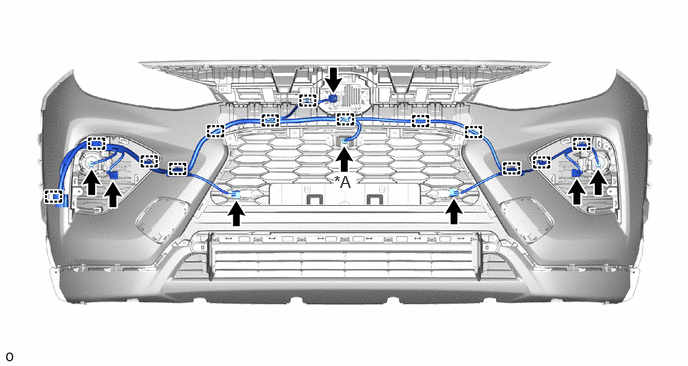

82114 1.REMOVE NO. 4 ENGINE ROOM WIRE

a.

Disconnect each connector.

3.479,1.792 3.708,1.99 0.229,0.198 12 true *A

*A

w/ Panoramic View Monitor System

-

-

b.

Detach the clamp and remove the No. 4 engine room wire.

89341K 2.REMOVE FRONT CORNER ULTRASONIC SENSOR

89341L 3.REMOVE FRONT CENTER ULTRASONIC SENSOR

86790B 4.REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

88211B 5.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

6.REMOVE NUT

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 nuts as shown in the illustration.

81220 7.REMOVE FOG LIGHT ASSEMBLY LH

81210A 8.REMOVE FOG LIGHT ASSEMBLY RH

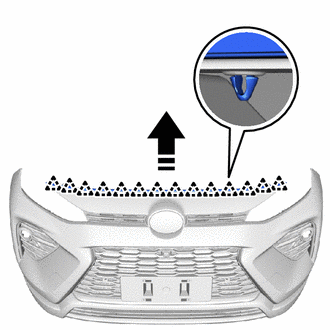

53395E 9.REMOVE FRONT HOOD TO END PANEL SEAL

a.

Detach the guide.

b.

0,0 0,0 false

Remove in this Direction

Detach the clip and remove the front hood to end panel seal as shown in the illustration.

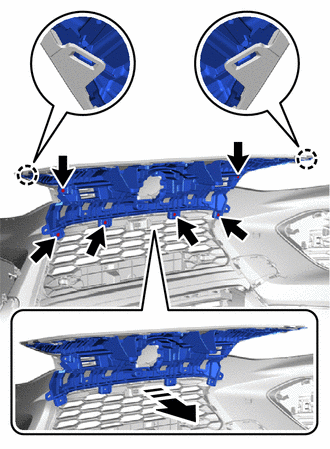

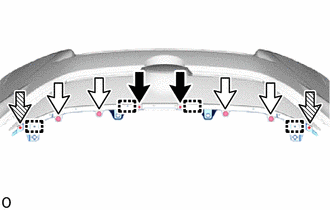

53115B 10.REMOVE RADIATOR GRILLE BRACKET

a.

0,0 0,0 false

	Screw
	Clip (A)
	Clip (B)

Remove the 2 screws.

b.

Remove the 4 clips (A).

c.

Remove the 2 clips (B) and detach the guide.

d.

0,0 0,0 false

Remove in this Direction

Remove the 6 screws.

e.

Detach the claw and remove the radiator grille bracket as shown in the illustration.

53124B 11.REMOVE SIDE RADIATOR GRILLE MOULDING LH

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the side radiator grille moulding LH as shown in the illustration.

53123B 12.REMOVE SIDE RADIATOR GRILLE MOULDING RH

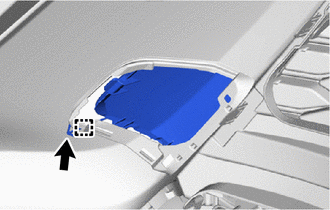

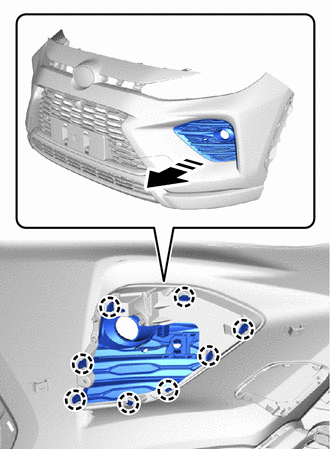

52128B 13.REMOVE FRONT BUMPER HOLE COVER LH

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the front bumper hole cover LH as shown in the illustration.

52127D 14.REMOVE FRONT BUMPER HOLE COVER RH

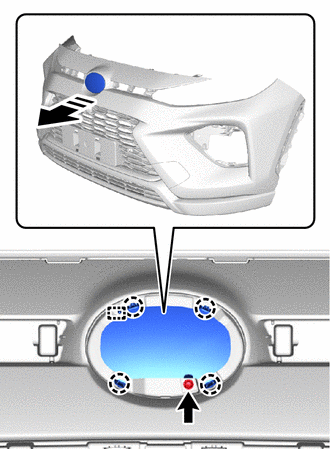

75311 15.REMOVE RADIATOR GRILLE EMBLEM

a.

0,0 0,0 false

Remove in this Direction

Remove the screw.

b.

Detach the claw and guide and remove the radiator grille emblem as shown in the illustration.

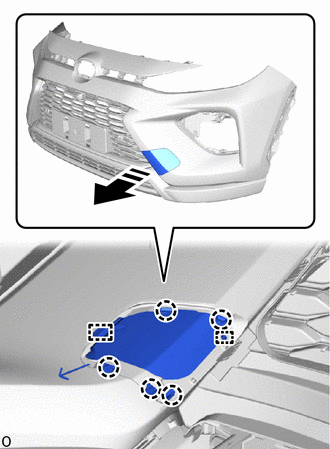

53286C 16.REMOVE FRONT BUMPER ARM HOLE COVER LH

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide as shown in the illustration.

b.

0,0 0,0 false

Fall Prevention Hook

Disconnect the fall prevention hook and remove the front bumper arm hole cover LH.

53285J 17.REMOVE FRONT BUMPER ARM HOLE COVER RH

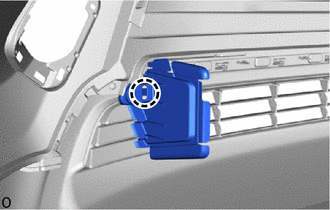

16695B 18.REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

a.

Detach the claw and remove the front radiator side air guide plate LH.

16691B 19.REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

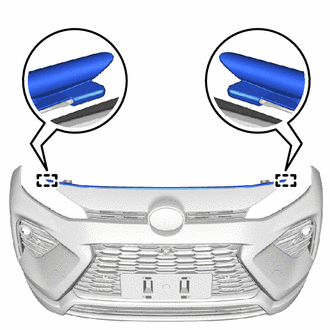

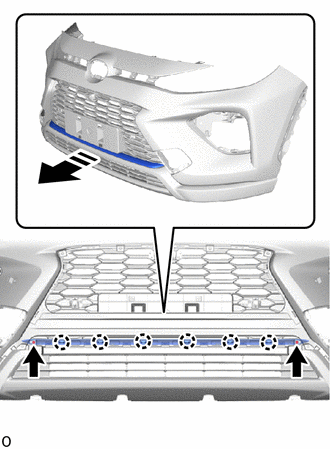

52711 20.REMOVE FRONT BUMPER MOULDING

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the claw and remove the front bumper moulding.

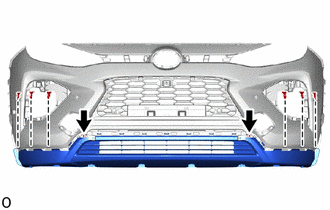

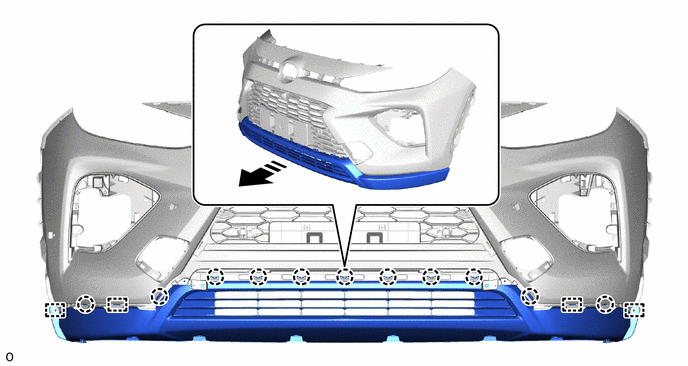

52411 21.REMOVE FRONT BUMPER GUARD

a.

Remove the 6 outside moulding retainers.

b.

Remove the 2 screws.

c.

Detach the claw and guide to remove the front bumper guard as shown in the illustration.

0,0 0,0 false

Remove in this Direction

-

-

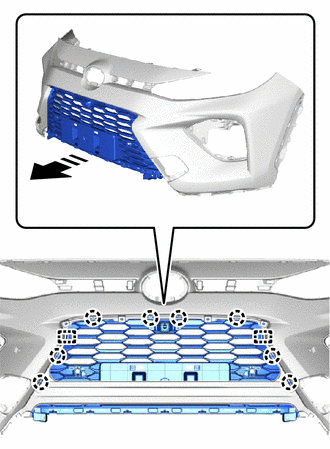

53112E 22.REMOVE LOWER NO. 1 RADIATOR GRILLE

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide to remove the lower No. 1 radiator grille as shown in the illustration.

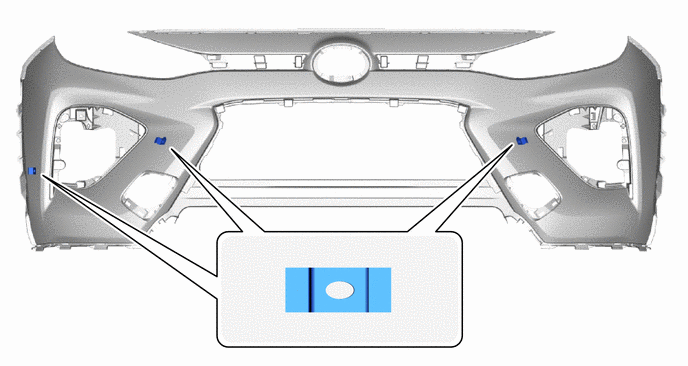

23.REMOVE ULTRASONIC SENSOR CLIP

HINT:

When removing the ultrasonic sensor clip, if the double-sided tape is difficult to remove, heat the adhesive of the ultrasonic sensor clip and front bumper cover using a heat light.

Standard Value:

Part	Temperature
Front Bumper Cover	20 to 30°C (68 to 86°F)
Ultrasonic Sensor Clip	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the ultrasonic sensor clip excessively.

a.

Remove the 3 ultrasonic sensor clips.

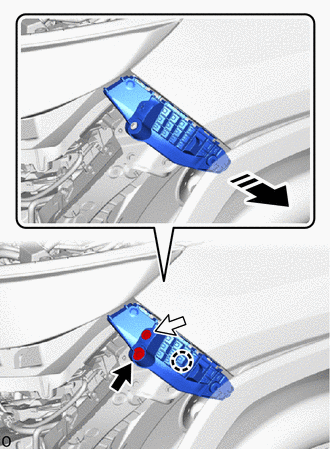

52536 24.REMOVE FRONT BUMPER SIDE RETAINER LH

a.

0,0 0,0 false

	Remove in this Direction
	Bolt
	Screw

Remove the bolt.

b.

Remove the screw.

c.

Detach the claw and remove the front bumper side retainer LH as shown in the illustration.

52535 25.REMOVE FRONT BUMPER SIDE RETAINER RH

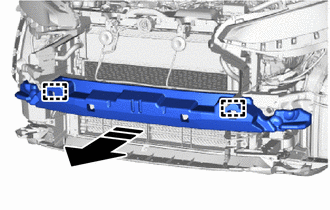

52614 26.REMOVE FRONT BUMPER NO. 2 ENERGY ABSORBER

a.

0,0 0,0 false

Remove in this Direction

Detach the guide and remove the front bumper No. 2 energy absorber.

52021 27.REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

52132A 28.REMOVE FRONT BUMPER NO. 2 REINFORCEMENT (for HV Model)

51441 29.REMOVE NO. 1 ENGINE UNDER COVER

52618 30.REMOVE FRONT BUMPER LOWER ABSORBER (for Gasoline Model)

52618 31.REMOVE FRONT BUMPER LOWER ABSORBER (for HV Model)

52103C 32.REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

52102F 33.REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
