RM36D0EC _51 Engine / Hybrid System _083064 M20D-FKS LUBRICATION _0403250 ENGINE OIL COOLER A

M20D-FKS LUBRICATION ENGINE OIL COOLER REMOVAL

PROCEDURE

Hide Display 53895B 1.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0303,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0303,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0303,

Hide Display 53896B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0304,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0304,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0304,

Hide Display 51441 3.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0003,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0003,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0003,

Hide Display 51420 4.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0004,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0004,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0004,

Hide Display 5.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>M20D-FKS COOLANT>REPLACEMENT201910,999999,_V1,_083136,_0403615,RM100000001JU0H_02_0001,

Hide Display 6.DRAIN ENGINE OIL

Click hereGeneral>MAINTENANCE>M20D-FKS OIL AND OIL FILTER>REPLACEMENT202304,999999,_V1,_083136,_0403252,RM100000002AE2H_02_0002,

Hide Display 15710 7.REMOVE OIL COOLER ASSEMBLY

1.25,0.958 0.854,0.958 true 2.948,1.448 2.813,1.448 2.813,1.448 2.573,1.125 true 0.708,0.875 0.875,1.063 0.167,0.188 10 true *1 3,1.354 3.198,1.542 0.198,0.188 10 true *2

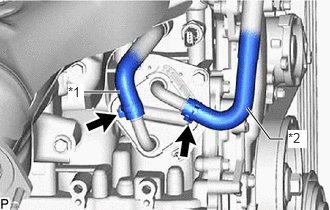

*1	No. 1 Water By-pass Hose
*2	No. 2 Water By-pass Hose

Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the oil cooler assembly.

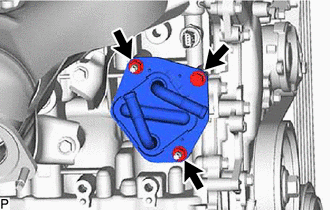

Remove the bolt, 2 nuts and oil cooler assembly from the cylinder block sub-assembly.

Remove the 2 oil cooler gaskets from the oil cooler assembly.
