MAINTENANCE  REAR BRAKE FLEXIBLE HOSE  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:
·

Because the left and right rear flexible hoses are not interchangeable, verify the part number when installing the rear flexible hoses.

·

When reusing the rear flexible hoses, use the identification marks created during removal to install each rear flexible hose to its original position.



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 47319F 1.INSTALL REAR FLEXIBLE HOSE LH

NOTICE:

When installing the rear flexible hose LH, minimize twisting of the hose.


a.

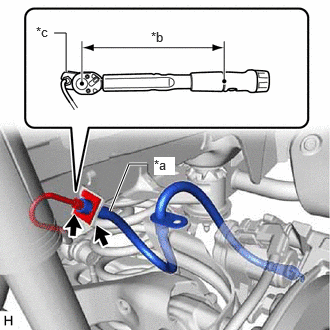

C408224C01
1.146,2.198 1.344,1.708 1.344,1.708 1.531,1.708 true 0.688,0.75 0.688,0.344 0.688,0.344 0.563,0.344 true 1.573,0.302 1.885,0.458 0.313,0.156 10 false *b 1.604,1.635 1.823,1.823 0.219,0.188 10 true *a 0.375,0.25 0.688,0.406 0.313,0.156 10 false *c
*a Identification Mark
*b Torque Wrench Fulcrum Length
*c Union Nut Wrench


Install the rear flexible hose LH with a new clip.

NOTICE:
·

Install the clip as far as it will go.

·

When installing the rear flexible hose LH, face the identification mark to the upper side of the vehicle.




b.

Using a union nut wrench, connect the brake line to the rear flexible hose LH while holding the rear flexible hose LH with a wrench.

Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.4 N*m (137 kgf*cm, 10 ft.*lbf)




c.

Install the rear flexible hose LH to the rear flexible hose bracket with the bolt.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)


d.

Install the rear flexible hose LH to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:

Install the rear flexible hose LH lock securely into the lock hole in the rear disc brake cylinder assembly.



Hide 2.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (for HV Model)

Click hereBrake>BRAKE (REAR)>REAR BRAKE>INSTALLATION

Hide 5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (for HV Model)

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
