RM36D0EC _53 Suspension _083074 REAR SUSPENSION _0402684 REAR TRAILING ARM A

REAR SUSPENSION  REAR TRAILING ARM  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 48780E 1.INSTALL REAR TRAILING ARM ASSEMBLY

a.

Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:
·

When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.




b.

Install the rear trailing arm assembly to the vehicle with the 2 bolts.

Torque:
90 N*m (918 kgf*cm, 66 ft.*lbf)


c.

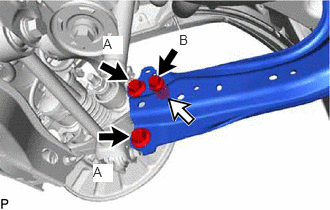

C403444N01
1.073,0.375 1.281,0.563 0.208,0.188 10 true A 0.969,1.708 1.177,1.896 0.208,0.188 10 true A 1.865,0.333 2.073,0.521 0.208,0.188 10 false B

Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 3 bolts and nut.

Torque:
Bolt A : 135 N*m (1377 kgf*cm, 100 ft.*lbf)
Bolt B : 75 N*m (765 kgf*cm, 55 ft.*lbf)


Hide 890C0A 2.INSTALL NO. 2 PARKING BRAKE WIRE ASSEMBLY

a.

Install the No. 2 parking brake wire assembly to the rear trailing arm assembly with the nut.

Torque:
15.5 N*m (158 kgf*cm, 11 ft.*lbf)


b.

Engage the 2 clamps.
