REAR SUSPENSION REAR COIL SPRING REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear coil spring removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model:)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Rear wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Brake warning light / yellow (minor malfunction) illuminates · Slip indicator light illuminates · VSC disabled or malfunctions	(202304,999999,_54,_083077,_0401811,RM1000000029TH7,)
Suspension, tires, etc.	Parking assist ECU initialization	Panoramic View Monitor System	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model:)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Rear wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_083077,_0402316,RM100000002AG8P,)
Suspension, tires, etc.	Parking assist ECU initialization	Panoramic View Monitor System	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201910,202405,_V1,_083136,_0403660,RM100000001JU8A,202405,202409,_V1,_083136,_0403660,RM100000002LVI8,202409,999999,_V1,_083136,_0403660,RM100000002NOW9,

Hide Display 48840A 2.REMOVE REAR STABILIZER LINK ASSEMBLY

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202104,999999,_53,_083074,_0402685,RM100000001WKLF_01_0015,

Hide Display 48231B 3.REMOVE REAR COIL SPRING

0.958,1.417 1.292,1.417 true 0.979,1.333 1.281,1.333 1.281,1.333 1.281,1.583 true 2.281,0.521 2.031,0.521 2.031,0.521 2.031,1.021 true 2.031,0.573 2.281,0.573 true 1.198,1.583 1.448,1.833 0.25,0.25 10 true *a 1.948,1 2.198,1.25 0.25,0.25 10 true *a

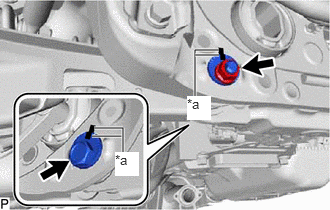

Matchmark

Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.

Loosen the nut (rear suspension member sub-assembly side) of the rear No. 2 suspension arm assembly.

NOTICE:: Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

1.75,1.833 2,1.833 false 1.917,2.25 2.167,2.25 false 2.042,1.771 2.292,2.021 0.25,0.25 10 false *a 2.208,2.188 2.542,2.438 0.333,0.25 10 false *b

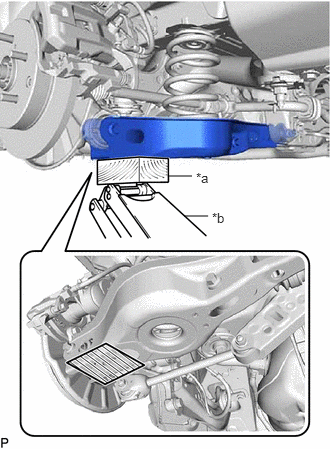

*a	Wooden Block
*b	Jack
	Wooden Block Placement Location

Using a jack and wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:: ·

When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.

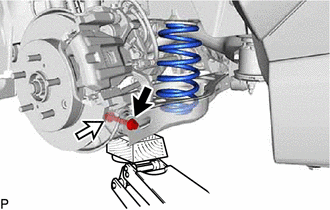

Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly from the rear axle carrier sub-assembly.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

Slowly lower the rear No. 2 suspension arm assembly, and then remove the rear coil spring.

Hide Display 48259A 4.REMOVE REAR UPPER COIL SPRING INSULATOR

Remove the rear upper coil spring insulator from the vehicle.

Hide Display 48258C 5.REMOVE REAR LOWER COIL SPRING INSULATOR

Remove the rear lower coil spring insulator from the rear No. 2 suspension arm assembly.
