CHECK FORWARD RECOGNITION CAMERA
DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the GTS once the inspection has been completed.
Do not apply larger loads than necessary since the connector may be damaged.
Measure the voltage and resistance according to the value(s) in the table below.

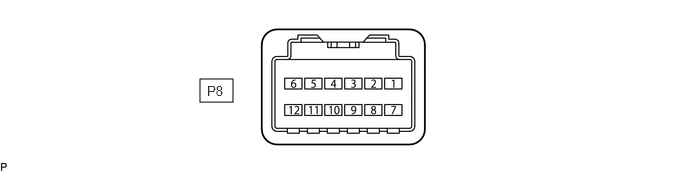

| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P8-7 (IGB) - P8-10 (GND) | P - W-B | Power source | Ignition switch ON | 11 to 14 V |
| Ignition switch off | Below 1 V | |||
| P8-10 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
CHECK MILLIMETER WAVE RADAR SENSOR ASSEMBLY
