RM36D0EC _53 Suspension _083073 FRONT SUSPENSION _0402673 FRONT SHOCK ABSORBER A

FRONT SUSPENSION FRONT SHOCK ABSORBER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front shock absorber assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model:)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Front wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Brake warning light / yellow (minor malfunction) illuminates · Slip indicator light illuminates · VSC disabled or malfunctions	(202304,999999,_54,_083077,_0401811,RM1000000029TH7,)
Suspension, tires, etc.	Parking assist ECU initialization	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model:)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Front wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_083077,_0402316,RM100000002AG8P,)
Suspension, tires, etc.	Parking assist ECU initialization	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

HINT:

Use the same procedure for the RH side and LH side.

The following procedure is for the LH side.

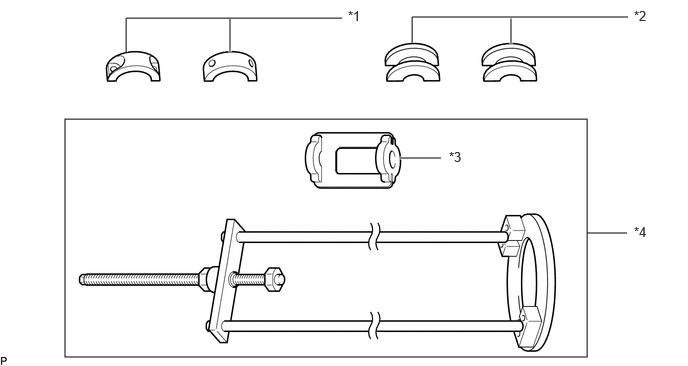

SST used when removing/installing the coil spring are shown as follows.

0.677,1.24 6.115,3.719 5.438,2.479 1.313,0.542 1.313,0.188 1.313,0.188 3.563,0.188 true 2.396,0.542 2.396,0.198 true 4.167,1.646 4.594,1.646 true 5.323,0.458 5.323,0.167 true 4.292,0.448 4.292,0.177 4.292,0.177 6.542,0.177 true 6.115,2.427 6.531,2.427 true 3.625,0.083 3.938,0.281 0.313,0.198 10 false *1 6.604,2.333 6.917,2.531 0.313,0.198 10 false *4 4.677,1.552 4.99,1.75 0.313,0.198 10 false *3 6.604,0.083 6.917,0.281 0.313,0.198 10 false *2

*1	SST(09727-58100)	*2	SST(09727-58130)
*3	SST(09727-58030)	*4	SST(09727-58010)

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201910,202405,_V1,_083136,_0403660,RM100000001JU8A,202405,202409,_V1,_083136,_0403660,RM100000002LVI8,202409,999999,_V1,_083136,_0403660,RM100000002NOW9,

Hide Display 2.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL201910,999999,_59,_083109,_0402375,RM100000001JI3S,

Hide Display 55752 3.REMOVE COWL VENTILATOR SPLASH SHIELD

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL201910,999999,_59,_083109,_0402375,RM100000001JI3S_01_0008,

Hide Display 55704B 4.REMOVE COWL VENTILATOR PANEL SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for A25B-FXS)>REMOVAL202304,202405,_58,_083104,_0403064,RM1000000029RHU_02_0129,202405,202409,_58,_083104,_0403064,RM100000002L0JK_02_0129,202409,999999,_58,_083104,_0403064,RM100000002NFZ9_02_0129,

Hide Display 48810 5.SEPARATE FRONT STABILIZER LINK ASSEMBLY

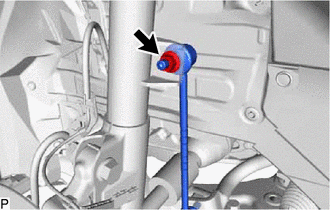

Remove the nut and separate the front stabilizer link assembly from the front shock absorber assembly.

NOTICE:: Do not damage the boot of the ball joint.

HINT:: If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

Hide Display 89543 6.SEPARATE FRONT SPEED SENSOR

Remove the bolt, disengage the clamp and separate the front speed sensor and front flexible hose from the front shock absorber assembly.

NOTICE:: Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.

Hide Display 48609E 7.LOOSEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

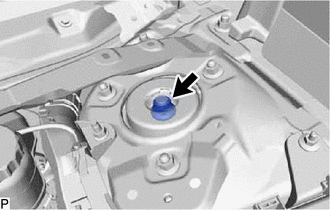

Loosen the front support to front shock absorber nut.

CAUTION:: ·

Only loosen the front support to front shock absorber nut if the front shock absorber with coil spring needs to be disassembled.

·

Only loosen the front support to front shock absorber nut, do not remove it.

·

If the front support to front shock absorber nut is removed with the front coil spring under tension, components of the front shock absorber with coil spring may fly off.

Hide Display 8.REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING

2.25,1.25 2.667,1.25 false 0.948,2 1.281,2 false 2.708,1.188 3.125,1.438 0.417,0.25 10 false *a 0.771,1.927 1.104,2.177 0.333,0.25 10 false *b

*a	Wooden Block
*b	Jack
	Front of the Vehicle
	Wooden Block Placement Location

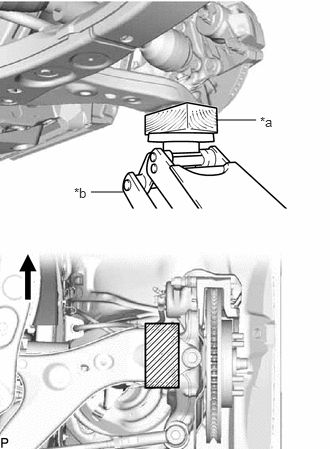

Support the front lower No. 1 suspension arm sub-assembly using a jack and wooden block.

NOTICE:: Keep the front lower No. 1 suspension arm sub-assembly supported until installation of the front shock absorber with coil spring is complete.

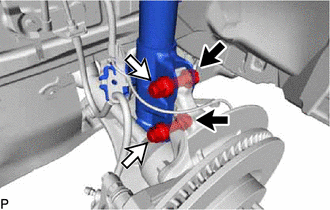

Remove the 2 bolts and 2 nuts, and separate the front shock absorber with coil spring (lower side) from the steering knuckle.

NOTICE:: ·

When removing the nuts, keep the bolts from rotating.

·

Use wire or an equivalent tool to hang the separated steering knuckle.

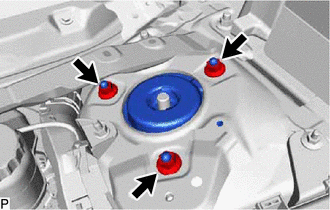

Remove the 3 nuts and front shock absorber with coil spring.

Hide Display 48680A 9.REMOVE FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

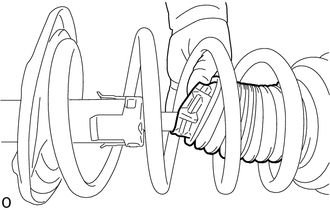

Fold back the No. 1 front shock absorber dust cover LH.

NOTICE:: Check that the No. 1 front shock absorber dust cover LH is not excessively deformed or crushed.

1.917,0.667 1.917,0.333 1.917,0.333 2.917,0.333 true 1.76,1.083 2.656,0.688 2.656,0.688 2.896,0.688 true 2.969,0.25 3.281,0.406 0.313,0.156 10 false *a 2.917,0.594 3.208,0.792 0.292,0.198 10 true *b

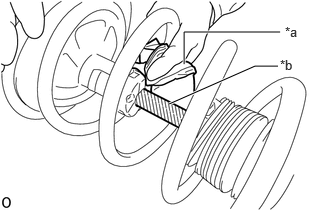

*a	Cloth, etc.
*b	Shock Rod

Using a piece of cloth, etc., clean the shock rod and remove any foreign matter and oil.

NOTICE:: Thoroughly clean the shock rod to prevent damage to the shock rod due to contact of foreign matter.

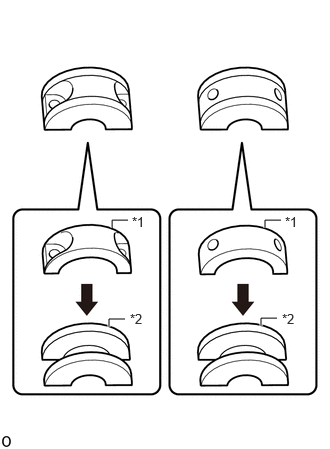

1.167,2.375 1.167,2.292 1.167,2.292 1.333,2.292 true 2.76,2.375 2.76,2.292 2.76,2.292 2.927,2.292 true 1.135,3.406 1.135,3.323 1.135,3.323 1.302,3.323 true 2.719,3.396 2.719,3.313 2.719,3.313 2.885,3.313 true 1.375,2.229 1.688,2.385 0.313,0.156 10 false *1 1.354,3.24 1.667,3.396 0.313,0.156 10 false *2 2.969,2.229 3.281,2.385 0.313,0.156 10 false *1 2.938,3.24 3.25,3.396 0.313,0.156 10 false *2

*1	SST(09727-58100)
*2	SST(09727-58130)

Attach SST (09727-58130) to SST (09727-58100).

SST: 09727-58100
09727-58130

NOTICE:: Check that there are no cracks or damage in SST (09727-58130) that could prevent it from securing the shock rod of the front shock absorber assembly LH.; If there are, replace SST (09727-58130) with a new one.

1.646,0.938 1.854,0.344 1.854,0.344 2.104,0.344 true 2.729,1.885 2.563,1.885 2.563,1.885 2.448,1.542 true 2.167,0.271 2.51,0.458 0.344,0.188 10 false *a 2.802,1.802 3.25,2.01 0.448,0.208 10 false SST

*a	Installation Surface

Clean the surface of SST (09727-58130) to which the front shock absorber assembly LH is installed and remove any foreign matter and oil.

NOTICE:: Thoroughly clean the installation surface to prevent damage to the shock rod due to contact of foreign matter.

1.781,0.948 2.531,0.698 2.531,0.698 2.698,0.698 true 2.75,0.604 3.208,0.802 0.458,0.198 10 false SST

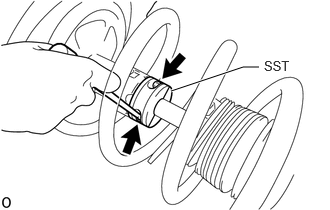

Using a long ball hexagon 5, install SST (09727-58100) and SST (09727-58130) to the shock rod.

NOTICE:: When installing SST (09727-58100) and SST (09727-58130), do not fold back the No. 1 front shock absorber dust cover LH in an improper direction and deform it.

HINT:: ·

Install SST (09727-58100) and SST (09727-58130) to the base of the shock rod and check that SST (09727-58100) and SST (09727-58130) are securing the shock rod.

·

The front shock absorber assembly LH has a built-in rebound spring and is constructed to constantly contract the shock rod.

For this reason, it is difficult to sufficiently contract the coil spring to a level that frees the front suspension support sub-assembly LH using only the coil spring compressor (09727-30022), making it necessary for SST (09727-58100), SST (09727-58130) and a long ball hexagon 5 to be used to ensure a shock rod free length in which work can be performed with a small amount of compression.

2.427,1.281 2.427,0.979 2.427,0.979 2.688,0.979 false 2.729,0.906 3.188,1.104 0.458,0.198 10 false SST

Secure SST in a vise.

SST: 09727-30022 09727-00051 (09727-00010, 09727-00031)

Attach the hooks of each SST arm across the diameter of the coil spring.

CAUTION:: ·

Make sure that the hooks are securely attached to the coil spring.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

·

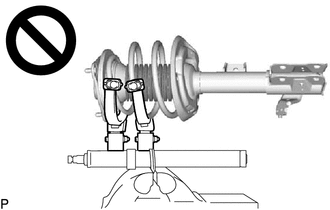

Make sure that the hooks of the upper and lower SST arms are attached to the coil spring so that the distance between the hooks is as large as possible.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

·

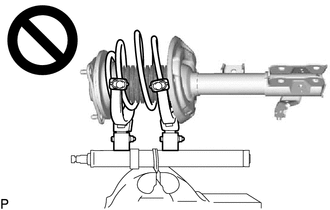

Make sure that the arms of SST are parallel and the number of coils between the arms is the same on each side.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

Install the stopper pins to the hooks of SST.

CAUTION:: ·

Make sure that the stopper pins are installed securely.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

0.229,1.271 0.979,1.271 true 0.479,1.271 0.479,1.521 0.479,1.521 0.813,1.521 true 1.167,1.917 2.75,1.917 2.75,1.917 2.75,1.667 true 1.417,1.667 2.917,1.667 true 0.052,1.208 0.302,1.458 0.25,0.25 10 false *a 2.958,1.604 3.292,1.938 0.333,0.333 10 false SST

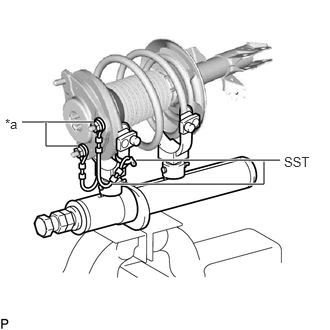

*a	Vehicle Nut

Install SST and 2 vehicle nuts to the upper support as shown in the illustration.

SST: 09727-30022 09727-00051 (09727-00090, 09727-00100)

Using SST, compress the coil spring.

SST: 09727-00110

CAUTION:: ·

If the coil spring starts to bow out while using SST, stop immediately and reattach SST correctly.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

·

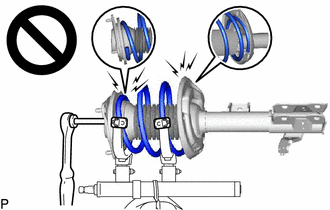

Do not compress the coil spring to the point where the coils touch each other.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

·

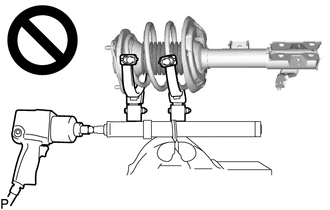

Do not use an impact wrench.

·

If an impact wrench is used, the threads of SST may be damaged, or sudden compression of the coil spring may cause a hook to disengage and the coil spring to fly out, resulting in injury.

·

0.604,4.333 1.229,4.333 true 0.292,4.281 0.792,4.531 0.5,0.25 10 false SST

If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.

·

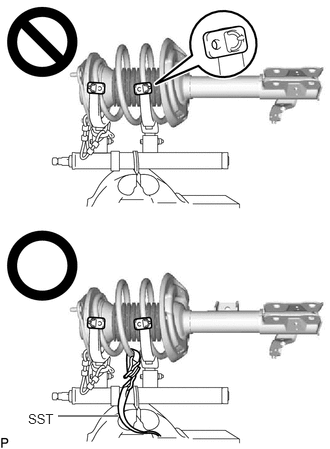

If a stopper pin is removed, install a coil spring stopper belt as shown in the illustration.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.

CAUTION:: ·

·

Do not remove the front support to front shock absorber nut while the coil spring is under tension.

·

If the front support to front shock absorber nut is removed with the coil spring under tension, components of the front shock absorber with coil spring may fly off, resulting in injury.

Hide Display 48603 10.REMOVE FRONT SUSPENSION SUPPORT SUB-ASSEMBLY

Remove the front suspension support sub-assembly from the front shock absorber assembly.

Hide Display 11.REMOVE STRUT MOUNTING BEARING WITH DUST COVER

Remove the strut mounting bearing with dust cover from the front shock absorber assembly.

Hide Display 48157C 12.REMOVE FRONT UPPER COIL SPRING INSULATOR

Remove the front upper coil spring insulator from the strut mounting bearing.

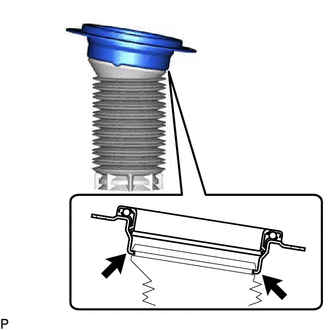

Hide Display 48619A 13.REMOVE STRUT MOUNTING BEARING

Disengage the top end of the front No. 1 shock absorber dust cover to remove the strut mounting bearing from the shock absorber dust cover.

Hide Display 48132 14.REMOVE FRONT COIL SPRING

Remove the front coil spring and SST.

NOTICE:: Do not use an impact wrench. It will damage SST.

Hide Display 48331C 15.REMOVE FRONT SPRING BUMPER

Remove the front spring bumper from the front shock absorber assembly.

Hide Display 48158B 16.REMOVE FRONT LOWER COIL SPRING INSULATOR

Remove the front lower coil spring insulator from the front shock absorber assembly.

Hide Display 48520 17.REMOVE FRONT SHOCK ABSORBER ASSEMBLY

Hide Display 48520 18.REMOVE FRONT SHOCK ABSORBER ASSEMBLY

Using SST (09727-58010), remove SST (09727-58100) and SST (09727-58130) from the front shock absorber assembly LH.

SST: 09727-58010 (09727-58030)

2.385,0.823 2.385,1.406 2.385,1.406 2.563,1.406 true 2.104,5.667 1.938,5.667 1.938,5.667 1.542,5.188 true 1.865,3.677 1.698,3.677 1.698,3.677 1.448,3.26 true 4.938,3.917 4.771,3.917 4.771,3.917 4.771,3.594 true 6.469,3.885 6.302,3.885 6.302,3.885 6.302,3.594 true 5,2.354 4.708,1.792 4.708,1.792 4.542,1.792 true 2.615,1.313 2.927,1.51 0.313,0.198 10 true *1 1.208,2.792 1.521,2.99 0.313,0.198 10 true *a 0.25,3.229 0.563,3.427 0.313,0.198 10 true *b 5,3.792 5.313,3.99 0.313,0.198 10 true *c 3.854,0.052 4.24,0.271 0.385,0.219 10 false [#2] 3.927,1.5 4.313,1.719 0.385,0.219 10 false [#3] 0.115,1.938 0.5,2.156 0.385,0.219 10 true [#4] 0.115,0.083 0.5,0.302 0.385,0.219 10 false [#1] 0.219,4.438 0.604,4.656 0.385,0.219 10 true [#5] 2.146,5.563 2.458,5.76 0.313,0.198 10 true *2 1.938,3.583 2.25,3.781 0.313,0.198 10 true *d 6.51,3.781 6.823,3.979 0.313,0.198 10 true *c 4.323,1.698 4.635,1.896 0.313,0.198 10 true *d

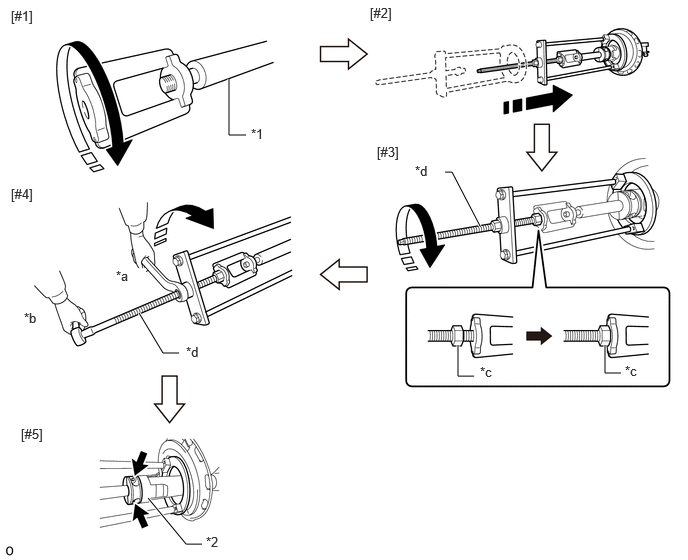

*1	Front Shock Absorber Assembly LH	*2	Shock Absorber Outer Shell
*a	Turn	*b	Hold
*c	Fixing Nut	*d	Bolt

NOTICE:

0,0 0,0 false

Application Area

Apply molybdenum grease to the bolt (area with diagonal lines) of SST (09727-58010).

Install SST (09727-58030) to the end of the shock rod of the front shock absorber assembly LH.[#1]

ii.

Install SST (09727-58010) to the front shock absorber assembly LH.[#2]

NOTICE:: Take due care when installing SST (09727-58010) to ensure the shock rod is not damaged.

iii.

Secure the SST (09727-58010) bolt and SST (09727-58030) with the fixing nut.[#3]

iv.

After securing the SST (09727-58010) bolt, rotate the nut clockwise.[#4]

NOTICE:: Extend the shock rod until SST (09727-58100) and SST (09727-58130) separate from the shock absorber outer shell.

Using a long ball hexagon 5, remove SST (09727-58100) and SST (09727-58130).[#5]

NOTICE:: If SST (09727-58100) and SST (09727-58130) are removed without using SST (09727-58010), the action of the rebound spring will cause the shock rod to contract suddenly. Therefore, remove SST (09727-58100) and SST (09727-58130) after securing the shock rod with SST (09727-58010).

vi.

Using a piece of cloth, etc., clean the shock rod of the front shock absorber assembly LH and remove any foreign matter and oil.

NOTICE:: If the shock rod is expanded/contracted while foreign matter or oil are still present, it may damage the front shock absorber assembly LH or cause oil leaks.

vii.

After securing the SST (09727-58010) bolt, rotate the nut counterclockwise.

viii.

Check that the shock rod and SST (09727-58030) have become free before releasing the fixing nut and removing SST (09727-58010) from the shock rod.

NOTICE:: Take due care when removing SST (09727-58010) to ensure the shock rod is not damaged.

ix.

Remove SST (09727-58030) from the end of the shock rod.

Using a piece of cloth, etc., clean the end of the shock rod threads and remove any foreign matter and oil.
