M20D-FKS EMISSION CONTROL  DIFFERENTIAL PRESSURE SENSOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 89481B 1.INSPECT DIFFERENTIAL PRESSURE SENSOR

a.
A539735E01
1.885,1.125 2.156,0.323 2.156,0.323 2.375,0.323 true 2.417,0.229 2.75,0.427 0.333,0.198 10 true SST

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / GPF Differential Pressure Offset Bank1.

Powertrain > Engine > Data List
Tester Display
GPF Differential Pressure Offset Bank1
50003 372 1184

e.

Slide the clip and disconnect the vacuum transmitting hose assembly from the differential pressure sensor.


f.

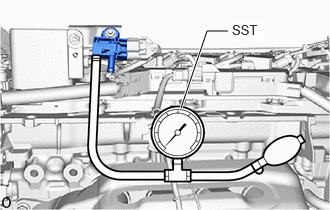

Connect SST to the differential pressure sensor.


g.

Using SST, apply pressure to the differential pressure sensor.

SST
09992-00242


h.

Check the pressure value of the differential pressure sensor.

Standard:
GTS Display Condition Specified Condition
GPF Differential Pressure Offset Bank1 Ignition switch on (IG) When applying 20 kPa (2.9 psi): 20 kPa (2.9 psi)
When applying 40 kPa (5.8 psi): 40 kPa (5.8 psi)


NOTICE:

Perform the inspection within the range of 0 to 98 kPa (0 to 1 kg/cm2, 0 to 14.2 psi).


If the result is not as specified, check the differential pressure sensor circuit.


i.

Disconnect SST from the differential pressure sensor.


j.

Connect the vacuum transmitting hose assembly to the differential pressure sensor and slide the clip to secure the hose.
