M20D-FKS EMISSION CONTROL  EXHAUST GAS TEMPERATURE SENSOR  INSTALLATION

1.396,1.313 1.615,1.5 0.219,0.188 10 true *a

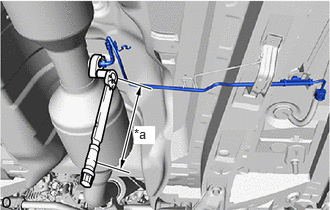

*a	Torque Wrench Fulcrum Length

Using a 14 mm union nut wrench, install the No. 2 exhaust gas temperature sensor.

NOTICE:

If the exhaust gas temperature sensor is dropped, replace it with a new one.

Torque:

30 N*m (306 kgf*cm, 22 ft.*lbf)

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201910,999999,_V1,_083040,_0402303,RM100000001JHCH,

·

When using a union nut wrench (fulcrum length of 25 mm (0.984 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 26.3 N*m (268 kgf*cm, 19 ft.*lbf)

3.229,0.833 3.427,1.063 0.198,0.229 10 true *a 0.719,2.385 0.917,2.604 0.198,0.219 10 true *c 2.615,1.104 2.802,1.323 0.188,0.219 10 true *b 2.604,0.604 2.792,0.792 0.188,0.188 10 true *b

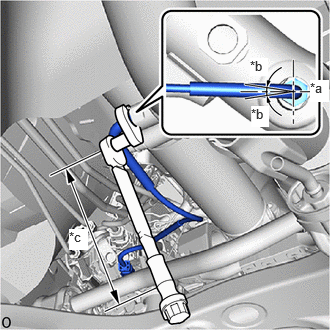

*a	Vehicle horizonal
*b	12°
*c	Torque Wrench Fulcrum Length

Using a 14 mm union nut wrench, install the exhaust gas temperature sensor as shown in the illustration.

NOTICE:

If the exhaust gas temperature sensor is dropped, replace the new one.

Torque:

30 N*m (306 kgf*cm, 22 ft.*lbf)

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201910,999999,_V1,_083040,_0402303,RM100000001JHCH,

·

When using a union nut wrench (fulcrum length of 25 mm (0.984 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 26.3 N*m (268 kgf*cm, 19 ft.*lbf)
