RM36D0EC _51 Engine / Hybrid System _083060 M20D-FKS FUEL _0403632 FUEL INJECTOR(for Port Injection) A

M20D-FKS FUEL  FUEL INJECTOR(for Port Injection)  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 23250F 1.INSTALL PORT FUEL INJECTOR ASSEMBLY

HINT:

Perform "Inspection After Repair" after replacing a port fuel injector assembly.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION


a.

Apply a light coat of spindle oil or gasoline to 4 new O-rings, and install one to each port fuel injector assembly.

NOTICE:

Check that there is no damage or foreign matter on the groove of the port fuel injector assembly when installing the O-ring to each port fuel injector assembly.



b.

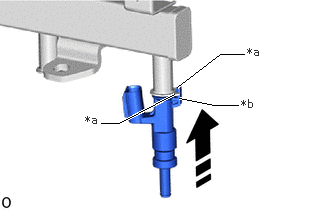

A460318C01
1.865,1.021 2.229,1.094 2.229,1.094 2.479,1.094 true 1.844,0.906 2.292,0.563 2.292,0.563 2.542,0.563 true 1.813,0.979 1.24,1.281 1.24,1.281 1.052,1.281 true 2.573,0.469 2.885,0.667 0.313,0.198 10 false *a 2.51,1.01 2.823,1.208 0.313,0.198 10 false *b 0.885,1.177 1.198,1.375 0.313,0.198 10 false *a
*a Claw
*b Stopper


Install the 4 port fuel injector assemblies to the fuel delivery pipe sub-assembly.

NOTICE:
·

Make sure that the port fuel injector assembly is located within the stopper as shown in the illustration.

·

Check that the port fuel injector assembly installation holes of the fuel delivery pipe sub-assembly are not damaged and are free of foreign matter.

·

Make sure that the O-ring is not damaged, twisted or moved out of place when installing the port fuel injector assembly.




Hide 82125N 2.INSTALL NO. 5 ENGINE WIRE

a.

Attach the 2 clamps and install the No. 5 engine wire to the fuel delivery pipe sub-assembly.


b.

Connect the 4 connectors to the 4 port fuel injector assemblies.


Hide 23291A 3.INSTALL INJECTOR VIBRATION INSULATOR

a.

Install 4 new injector vibration insulators to the cylinder head sub-assembly.


Hide 23891 4.INSTALL FUEL DELIVERY SPACER

a.

Install the 2 fuel delivery spacers to the cylinder head sub-assembly.


Hide 23807 5.INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY

a.

Place the fuel delivery pipe sub-assembly to the cylinder head sub-assembly.

NOTICE:

Be careful not to drop the port fuel injector assemblies when installing the fuel delivery pipe sub-assembly.



b.

Install the fuel delivery pipe sub-assembly with the 2 bolts.

Torque:
28.5 N*m (291 kgf*cm, 21 ft.*lbf)


c.

Connect the connector to the fuel delivery pipe sub-assembly.


Hide 23910A 6.CONNECT FUEL TUBE SUB-ASSEMBLY

a.

Connect the fuel tube sub-assembly to the fuel delivery pipe sub-assembly.

Click hereEngine / Hybrid System>M20D-FKS (FUEL)>FUEL SYSTEM>PRECAUTION


b.

Install the fuel pipe clamp to the fuel tube connector.


Hide 9. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


Hide 11.PERFORM INITIALIZATION
