CRUISE CONTROL
_0401001
FRONT CAMERA SYSTEM
U
CRUISE CONTROL FRONT CAMERA SYSTEM TERMINALS OF ECU
CHECK FORWARD RECOGNITION CAMERA
- NOTICE:
- ·
DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the GTS once the inspection has been completed.
·Do not apply larger loads than necessary since the connector may be damaged.
a.
Check forward recognition camera
1.99,0.74 2.385,0.99
0.396,0.25
2.104,0.792 2.417,0.99
0.313,0.198
10
false

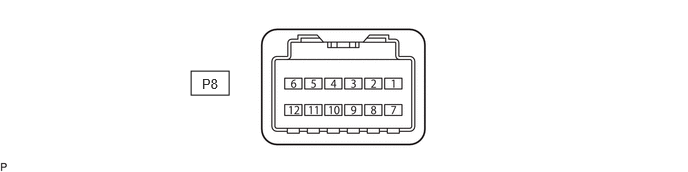

P8
b.
Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| P8-7 (IGB) - Body ground | Power source | Ignition switch ON | 11 to 14 V |
| Ignition switch off | Below 1 V | ||
| P8-1 (HTR) - P8-10 (GND) | Forward recognition with heater hood sub-assembly operation signal | Ignition switch ON, forward recognition with heater hood sub-assembly not operating | 11 to 14 V |
| Ignition switch ON, forward recognition with heater hood sub-assembly operating | Below 1 V | ||
| P8-10 (GND) - Body ground | Ground | Always | Below 1 Ω |
