METER / GAUGE / DISPLAY  TRIP SWITCH  INSPECTION

1.292,3 1.438,2.583 false 2.104,3.021 1.938,2.583 false 1.156,3.021 1.51,3.219 0.354,0.198 10 false A/B 2.104,3.021 2.26,3.219 0.156,0.198 10 false E 0.052,0.052 0.427,0.292 0.375,0.24 12 false *a

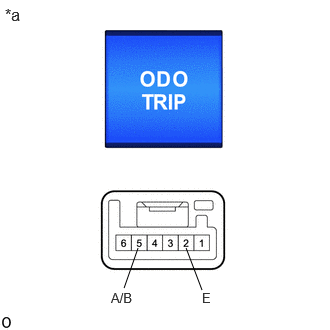

*a	Component without harness connected (ODO/TRIP Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
5 (A/B) - 2 (E)	ODO/TRIP switch pressed	Below 1 Ω
	ODO/TRIP switch not pressed	10 kΩ or higher

If the result is not as specified, replace the trip switch.

Check the illumination.

i.

1.198,2.917 1.281,2.583 false 2.104,2.583 2.188,2.917 false 1.115,2.958 1.448,3.156 0.333,0.198 10 false ILL+ 2.135,2.948 2.75,3.146 0.615,0.198 10 false ILL- 0.073,0.094 0.385,0.292 0.313,0.198 12 false *a

*a	Component without harness connected (ODO/TRIP Switch)

Apply auxiliary battery voltage to the trip switch and check that it illuminates.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 6 (ILL+) Auxiliary battery negative (-) → Terminal 1 (ILL-)	Illuminates

If the result is not as specified, replace the trip switch.
