RM36D0EC _58 Vehicle Interior _083097 METER / GAUGE / DISPLAY _0588351 TRIP SWITCH A

METER / GAUGE / DISPLAY TRIP SWITCH INSTALLATION

PROCEDURE

Hide Display 84975 1.INSTALL TRIP SWITCH

a.

E507751C01

0,0 0,0 false

V113147

Install in this Direction

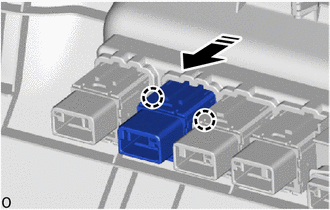

Attach the claw to install the trip switch as shown in the illustration.

Hide Display 55545 2.INSTALL FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0016,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0016,

Hide Display 77306 3.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0039,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0039,

Hide Display 53601 4.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0017,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0017,

Hide Display 55606 5.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0040,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0040,

Hide Display 62112 6.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0041,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0041,

Hide Display 67914B 7.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0035,
