RM36D0EC _58 Vehicle Interior _083097 METER / GAUGE / DISPLAY _0588351 TRIP SWITCH A

METER / GAUGE / DISPLAY TRIP SWITCH REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0069,

Hide Display 62112 2.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0028,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0028,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0028,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0002,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0002,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0002,

Hide Display 53601 4.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0079,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0079,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0079,

Hide Display 77306 5.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0080,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0080,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0080,

Hide Display 55545 6.REMOVE FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0009,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0009,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0009,

Hide Display 84975 7.REMOVE TRIP SWITCH

a.

E507750C01

0,0 0,0 false

	Remove in this Direction
	Protective Tape

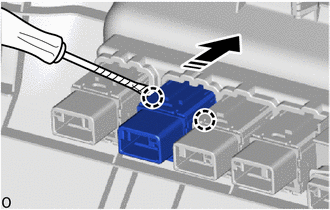

Using a thin-bladed screwdriver, detach the claw, and remove the trip switch in the direction indicated by the arrow shown in the illustration.

HINT:: Tape the thin-bladed screwdriver tip before use.
