FRONT DRIVE SHAFT ASSEMBLY(for AWD)
G
DRIVE SHAFT / PROPELLER SHAFT FRONT DRIVE SHAFT ASSEMBLY(for AWD) INSPECTION
CAUTION / NOTICE / HINT
- NOTICE:
- ·
When using a vise, place aluminum plates between the part and vise.
·When using a vise, do not overtighten it.
PROCEDURE
1.INSPECT FRONT DRIVE SHAFT ASSEMBLY
a.
Check that there is no excessive play in the radial direction of the outboard joint.
b.
Check that the inboard joint slides smoothly in the thrust direction.
c.
Check that there is no excessive play in the radial direction of the inboard joint.
d.
Check the boots for damage.
e.

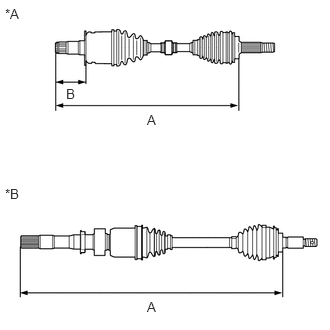

Check whether the drive shaft dimension (A) and (B) are within specification.
- NOTICE:
-
Keep the drive shaft assembly level during inspection.
i.
1.531,1.167 1.688,1.365
0.156,0.198
10
false
A
1.531,3.115 1.688,3.313
0.156,0.198
10
false
A
0.688,0.896 0.844,1.094
0.156,0.198
10
false
B
0.052,0.063 0.365,0.219
0.313,0.156
10
false
*A
0.052,1.938 0.365,2.094
0.313,0.156
10
false
*B
| *A | for LH Side |
| *B | for RH Side |
for Gasoline model:
- Dimension (A):
for LH Side 603.2 mm (1.98 ft.) for RH Side 905.0 mm (2.97 ft.)
- Dimension (B):
for LH Side 88.2 mm (3.47 in.) for RH Side -
ii.
0.125,0.125 0.438,0.281
0.313,0.156
10
false
*A
0.167,1.333 0.479,1.49
0.313,0.156
10
false
*B
1.542,0.885 1.74,1.083
0.198,0.198
10
false
A
1.604,2.833 1.802,3.031
0.198,0.198
10
false
A
0.646,0.604 0.844,0.802
0.198,0.198
10
false
B
0.219,2.625 0.417,2.823
0.198,0.198
10
false
B
| *A | for LH Side |
| *B | for RH Side |
for HV model:
- Dimension (A):
for LH Side 607.6 mm (1.99 ft.) for RH Side 906.4 mm (2.97 ft.)
- Dimension (B):
for LH Side 88.2 mm (3.47 in.) for RH Side 83.7 to 84.7 mm (3.30 to 3.33 in.)
