RM36D0EC _56 Audio / Visual / Telematics _083086 AUDIO / VIDEO _0400677 STEREO JACK ADAPTER ASSEMBLY A

AUDIO / VIDEO STEREO JACK ADAPTER ASSEMBLY INSTALLATION

PROCEDURE

Hide Display 86190C 1.INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY

0,0 0,0 false

Install in this Direction

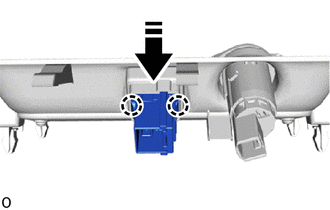

Attach the claw to install the No. 1 stereo jack adapter assembly as shown in the illustration.

Hide Display 58813 2.INSTALL UPPER CONSOLE BOX (w/o Wireless Charger)

Hide Display 861C0 3.INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

Hide Display 58804A 4.INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

Hide Display 33504F 5.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

for HV Model:

for Gasoline Model:

K121:

K121F:
