Vehicle Exterior
_083096
LIGHTING (EXT)
_0419112
FOG LIGHT ASSEMBLY(for LED Fog Light)
A
LIGHTING (EXT) FOG LIGHT ASSEMBLY(for LED Fog Light) REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
53896B
1.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH
- HINT:
-
Use the same procedure described for the RH side.
81220
2.REMOVE FOG LIGHT ASSEMBLY LH
a.
Turn the steering wheel to the right.
b.

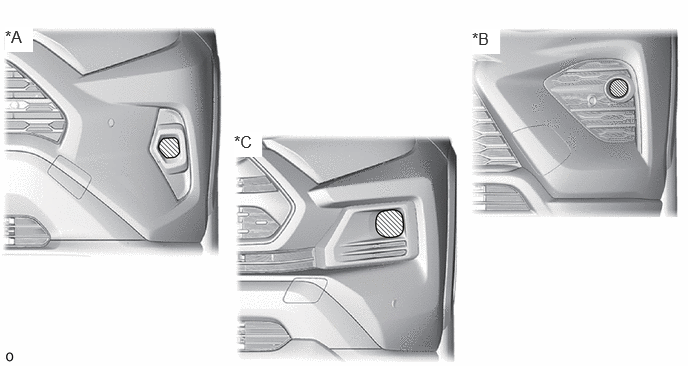

Apply protective tape to the fog light lens.
0.052,0.281 0.344,0.542
0.292,0.26
12
true
*A
4.917,0.302 5.208,0.563
0.292,0.26
12
true
*B
2.438,1.375 2.729,1.635
0.292,0.26
12
true
*C
| *A | for Type A | *B | for Type B |
| *C | for Off Road Package | - | - |
|
Protective Tape | - | - |
c.
0,0 0,0
false
|
Screw |
|
Clip |
Remove the screw.
d.
Remove the 2 clips.
e.
Open the front fender liner LH as shown in the illustration.
f.
Insert a hand in the gap, and then disconnect the connector.
0.552,0.115 0.896,0.333
0.344,0.219
12
true
*A
4.229,0.135 4.583,0.354
0.354,0.219
12
true
*B
0.573,2.01 0.875,2.281
0.302,0.271
12
true
*C
| *A | for Type A | *B | for Type B |
| *C | for Off Road Package | - | - |
g.
for Type A, for Off Road Package:
i.
Remove the 2 screws and detach the guide and remove the fog light assembly LH.
0.365,0.052 0.635,0.26
0.271,0.208
10
true
*A
3.5,0.094 3.76,0.292
0.26,0.198
10
true
*B
| *A | for Type A | *B | for Off Road Package |
h.
for Type B:
i.
Remove the 3 screws and the fog light assembly LH.
