EXTERIOR PANELS / TRIM  FRONT BUMPER(for Off Road Package)  DISASSEMBLY

82114 1.REMOVE NO. 4 ENGINE ROOM WIRE

a.

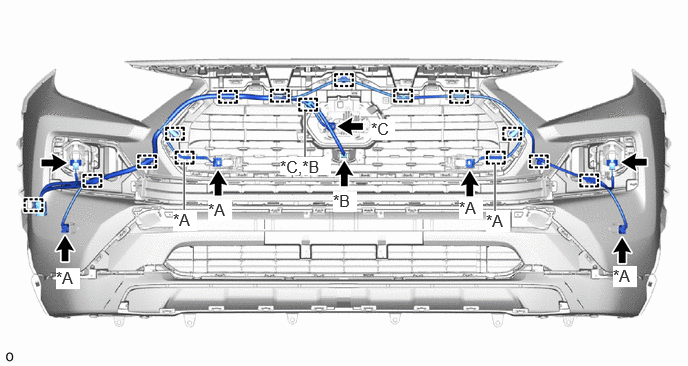

Disconnect each connector.

1.917,2.188 1.917,1.688 true 5.156,2.208 5.156,1.708 true 3.177,1.667 3.177,1.167 true 0.583,2.792 0.833,3.01 0.25,0.219 12 true *A 2.167,2.083 2.417,2.302 0.25,0.219 12 true *A 4.781,2.063 5.031,2.281 0.25,0.219 12 true *A 6.385,2.771 6.635,2.99 0.25,0.219 12 true *A 3.469,1.99 3.719,2.208 0.25,0.219 12 true *B 3.865,1.24 4.115,1.458 0.25,0.219 12 true *C 1.802,2.188 2.052,2.406 0.25,0.219 12 true *A 5.063,2.198 5.313,2.417 0.25,0.219 12 true *A 2.917,1.635 3.448,1.823 0.531,0.188 12 true *C,*B

*A	w/ TOYOTA Parking Assist-sensor System	*B	w/ Panoramic View Monitor System
*C	w/ Dynamic Radar Cruise Control System	-	-

b.

Detach the clamp and remove the No. 4 engine room wire.

89341K 2.REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

89341L 3.REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

89347B 4.REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

86790B 5.REMOVE FRONT TELEVISION CAMERA ASSEMBLY

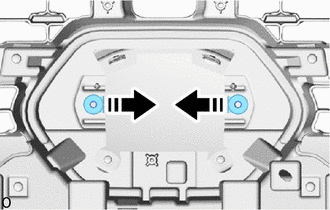

88211B 6.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

7.REMOVE NUT

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 nuts.

81220 8.REMOVE FOG LIGHT ASSEMBLY LH

81210A 9.REMOVE FOG LIGHT ASSEMBLY RH

53395E 10.REMOVE FRONT HOOD TO END PANEL SEAL

a.

0,0 0,0 false

Remove in this Direction

Detach the clip and remove the front hood to end panel seal.

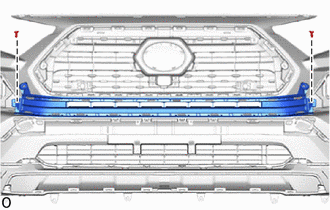

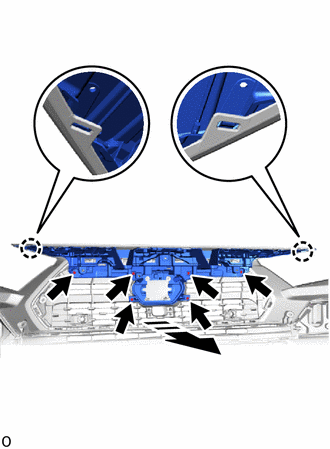

53115B 11.REMOVE RADIATOR GRILLE BRACKET

a.

0,0 0,0 false

	Screw
	Clip (A)
	Clip (B)

Remove the 2 screws.

b.

Remove the 4 clips (A).

c.

Remove the 2 clips (B) and detach the guide.

d.

0,0 0,0 false

Remove in this Direction

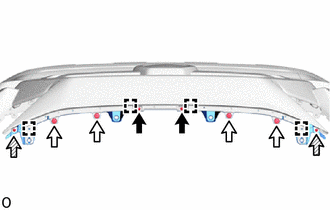

Remove the 6 screws.

e.

Detach the claw and remove the radiator grille bracket as shown in the illustration.

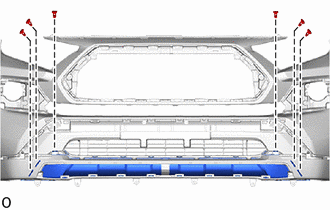

53112A 12.REMOVE LOWER RADIATOR GRILLE

a.

Remove the 2 outside moulding retainers.

b.

0,0 0,0 false

Remove in this Direction

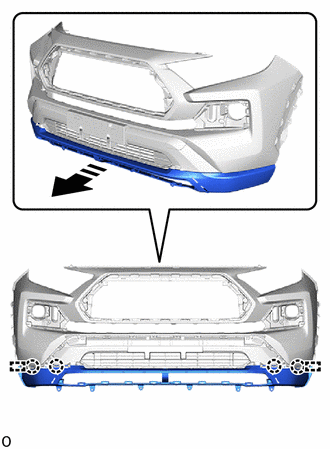

Detach the claw and guide to remove the lower radiator grille.

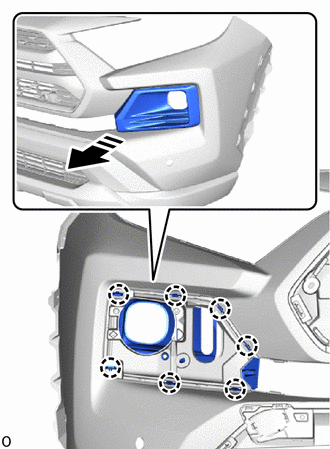

52128B 13.REMOVE FRONT BUMPER HOLE COVER LH

a.

0,0 0,0 false

Remove in this Direction

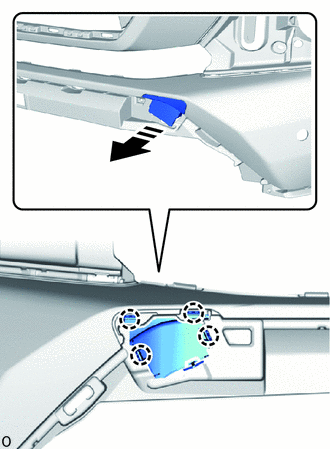

Detach the claw and remove the front bumper hole cover LH as shown in the illustration.

52127D 14.REMOVE FRONT BUMPER HOLE COVER RH

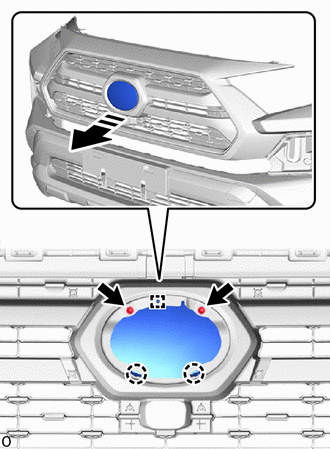

75311 15.REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the claw and guide and remove the radiator grille (or front panel) emblem as shown in the illustration.

53111 16.REMOVE RADIATOR GRILLE

a.

0,0 0,0 false

Remove in this Direction

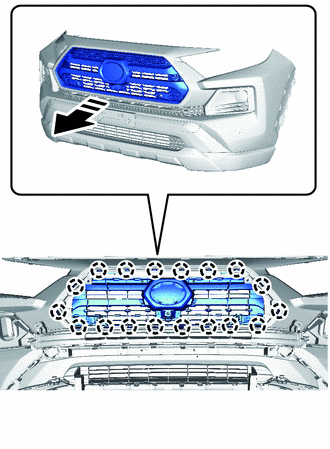

Detach the claw and remove the radiator grille as shown in the illustration.

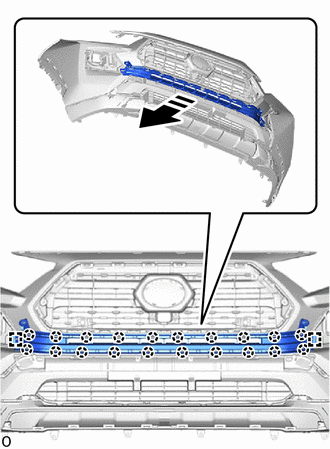

52711 17.REMOVE FRONT BUMPER MOULDING

a.

Remove the 4 clips.

b.

Remove the 6 outside moulding retainers.

c.

0,0 0,0 false

Remove in this Direction

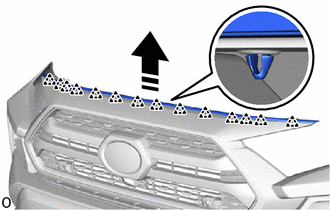

Detach the claw and guide and remove the front bumper moulding as shown in the illustration.

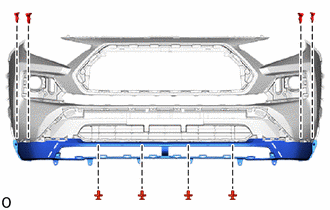

52411 18.REMOVE FRONT BUMPER GUARD

a.

Remove the 4 outside moulding retainers.

b.

Remove the 4 clips.

c.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide to remove the front bumper guard as shown in the illustration.

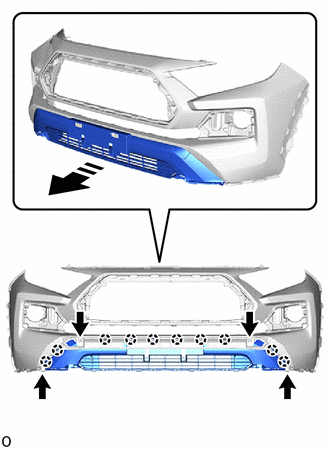

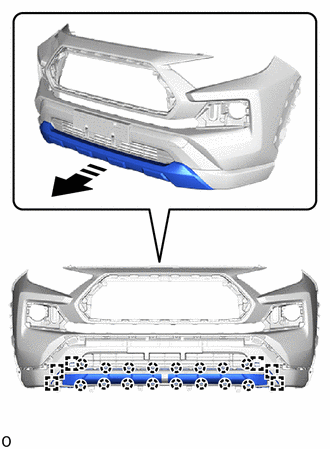

53113E 19.REMOVE LOWER NO. 2 RADIATOR GRILLE

a.

0,0 0,0 false

Remove in this Direction

Remove the 4 screws.

b.

Detach the claw to remove the lower No. 2 radiator grille as shown in the illustration.

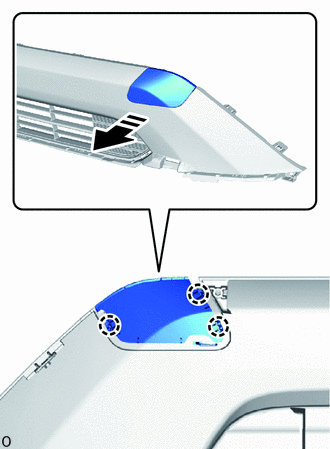

53286C 20.REMOVE FRONT BUMPER ARM HOLE COVER LH

a.

0,0 0,0 false

Remove in this Direction

Detach the claw.

b.

0,0 0,0 false

Fall Prevention Hook

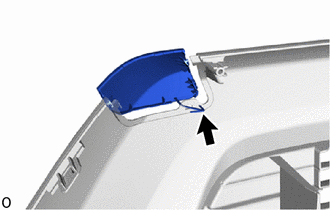

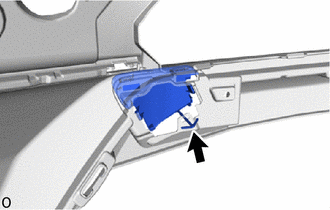

Detach the fall prevention hook and remove the front bumper arm hole cover LH.

53285J 21.REMOVE FRONT BUMPER ARM HOLE COVER RH

52438 22.REMOVE FRONT BUMPER GUARD COVER LH

a.

0,0 0,0 false

Remove in this Direction

Detach the claw.

b.

0,0 0,0 false

Fall Prevention Hook

Detach the fall prevention hook and remove the front bumper guard cover LH.

52437 23.REMOVE FRONT BUMPER GUARD COVER RH

24.REMOVE ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

HINT:

When removing the ultrasonic sensor retainer, if the double-sided tape is difficult to remove, heat the adhesive of the ultrasonic sensor retainer and front bumper cover using a heat light.

Standard:

Item	Temperature
Front Bumper Cover	20 to 30°C (68 to 86°F)
Ultrasonic Sensor Retainer	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the ultrasonic sensor retainer excessively.

a.

Remove the ultrasonic sensor retainer.

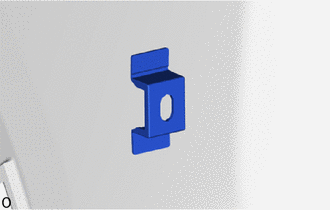

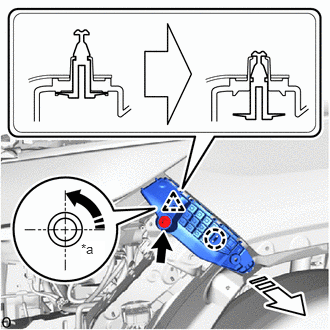

52536 25.REMOVE FRONT BUMPER SIDE RETAINER LH

a.

0.844,2.51 1.094,2.708 0.25,0.198 10 true *a

*a	90°
	Rotation Direction
	Remove in this Direction

Remove the bolt.

b.

Using a screwdriver, turn the clip 90° and detach the clip and claw to remove the front bumper side retainer LH as shown in the illustration.

52535 26.REMOVE FRONT BUMPER SIDE RETAINER RH

52614 27.REMOVE FRONT BUMPER NO. 2 ENERGY ABSORBER

a.

0,0 0,0 false

Remove in this Direction

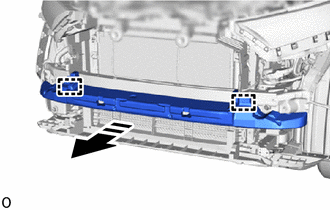

Detach the guide and remove the front bumper No. 2 energy absorber.

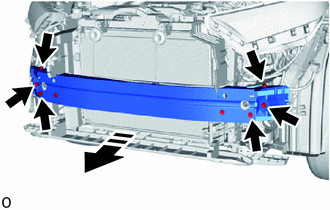

52021 28.REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

a.

Detach the wire harness clamp.

b.

0,0 0,0 false

Remove in this Direction

Remove the 6 bolts and front bumper reinforcement sub-assembly as shown in the illustration.

51441 29.REMOVE NO. 1 ENGINE UNDER COVER

a.

Remove the 2 screws and 2 bolts.

0,0 0,0 false

Bolt

Screw

b.

0,0 0,0 false

Remove in this Direction

Detach the guide and remove the No. 1 engine under cover.

52618 30.REMOVE FRONT BUMPER LOWER ABSORBER

52103C 31.REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

a.

0,0 0,0 false

	Bolt
	Nut

Remove the 2 nuts and 2 bolts and front bumper extension sub-assembly LH.

52102F 32.REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
