RM36D0EC _V1 General _083136 MAINTENANCE _0403536 FRONT TURN SIGNAL LIGHT BULB A

MAINTENANCE  FRONT TURN SIGNAL LIGHT BULB  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81510C 1.INSTALL FRONT TURN SIGNAL LIGHT BULB (for Triple Beam Headlight)

a.

for Type A:

i.

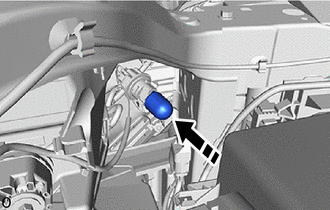

E409893C01
0,0 0,0 false
V113147

Install in this Direction


Install the front turn signal light bulb to the bulb socket.


ii.

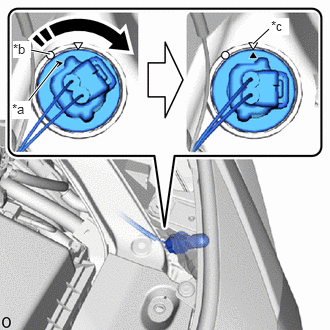

B555527C01
0.302,1.042 0.604,0.656 true 2.802,0.302 2.635,0.458 true 0.521,0.563 0.323,0.521 true 0.125,1.052 0.323,1.24 0.198,0.188 10 true *a 2.823,0.188 3.01,0.365 0.188,0.177 10 true *c 0.135,0.427 0.323,0.604 0.188,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction


Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark and connect the bulb socket.



b.

for Type B:

i.

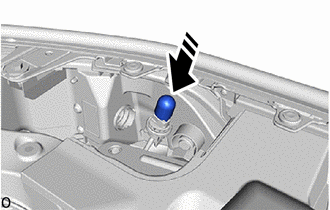

E511664C01
0,0 0,0 false
V113147

Install in this Direction


Install the front turn signal light bulb to the headlight cord LH.


ii.

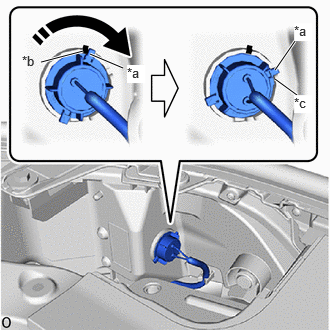

E511665C01
0.427,0.646 0.865,0.531 true 3.073,0.427 2.865,0.729 true 3.094,0.99 2.865,0.823 true 1.281,0.708 0.938,0.563 true 3.063,0.99 3.25,1.177 0.188,0.188 10 true *c 1.323,0.677 1.51,0.865 0.188,0.188 10 true *a 3.063,0.24 3.25,0.427 0.188,0.188 10 true *a 0.229,0.552 0.417,0.74 0.188,0.188 10 false *b
*a Rib
*b Unlock Position
*c Lock Position
V113147

Turn in this Direction


Align the rib of the headlight cord LH with the unlock position, and then turn the headlight cord LH clockwise until the lock position and connect the headlight cord LH.


iii.

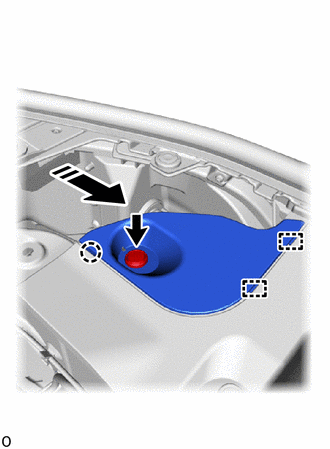

B573020C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw, install the maintenance cover LH as shown in the illustration.


iv.

Install the clip.



Hide 81510C 2.INSTALL FRONT TURN SIGNAL LIGHT BULB (for Single Beam Headlight)

a.

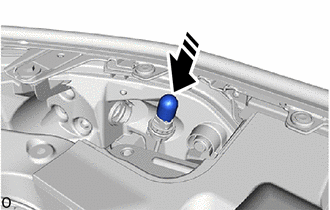

E511666C01
0,0 0,0 false
V113147

Install in this Direction


Install the front turn signal light bulb to the headlight cord LH.


b.
E511667C01
0.385,0.573 0.823,0.5 true 1.302,0.74 0.917,0.542 true 3.094,0.49 2.844,0.688 true 2.802,0.781 3.021,0.938 true 0.229,0.5 0.458,0.677 0.229,0.177 10 true *b 3.073,0.885 3.26,1.073 0.188,0.188 10 true *c 1.281,0.667 1.469,0.854 0.188,0.188 10 true *a 3.115,0.375 3.302,0.563 0.188,0.188 10 true *a
*a Rib
*b Unlock Position Mark
*c Lock Position
V113147

Turn in this Direction


Align the rib of the headlight cord LH with the unlock position, and then turn the headlight cord LH clockwise until the lock position and connect the headlight cord LH.


c.
B573020C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw, install the maintenance cover LH as shown in the illustration.


d.

Install the clip.
