MIRROR (EXT)  OUTER REAR VIEW MIRROR  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 87940 1.INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

a.

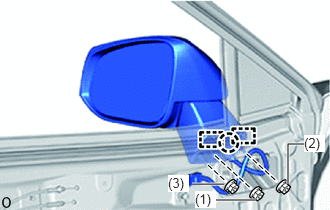

B525951N01
2,1.917 2.333,1.917 true 2.25,2.083 2.667,2.083 true 3,1.917 3,1.5 3,1.5 3.167,1.5 true 2.031,1.99 2.25,2.167 0.219,0.177 10 true (1) 3.167,1.406 3.385,1.583 0.219,0.177 10 true (2) 1.75,1.823 1.969,2 0.219,0.177 10 true (3)

Attach the claw and guide to set the outer rear view mirror assembly LH.

NOTICE:

Hold the outer rear view mirror assembly LH with one hand so that it does not drop.



b.

Install the 3 nuts and install the outer rear view mirror assembly LH in the order shown in the illustration.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


Hide 2.INSTALL OUTER MIRROR INSTALL HOLE COVER LH

a.
B525828

Attach the claw to set the outer mirror install hole cover LH.


b.

Install the outer mirror install hole cover LH with the screw.


c.
B525827

Attach the clamp.


d.

Connect the connector.
