Vehicle Exterior
_083108
SLIDING ROOF / CONVERTIBLE
_0400986
SLIDING ROOF SWITCH ASSEMBLY
G
SLIDING ROOF / CONVERTIBLE SLIDING ROOF SWITCH ASSEMBLY INSPECTION
PROCEDURE
81208
1.INSPECT MAP LIGHT SUB-ASSEMBLY (for Panoramic Moon Roof)
a.
Check the sliding roof switch (map light sub-assembly).
i.
0.813,1.781 1.229,1.365
true
2.448,1.781 2.031,1.365
true
2.094,1.781 1.844,1.365
true
1.167,1.792 1.417,1.375
true
1.625,1.781 1.625,1.365
true
3.156,1.802 2.74,1.385
true
0.104,0.083 0.417,0.281
0.313,0.198
10
false
*a
0.729,1.802 1.094,2.104
0.365,0.302
10
false
B
1.104,1.823 1.469,2.125
0.365,0.302
10
false
UP
1.448,1.823 2.063,2.094
0.615,0.271
10
false
DOWN
2,1.823 2.365,2.125
0.365,0.302
10
false
OPN
2.396,1.813 2.76,2.115
0.365,0.302
10
false
CLS
3.083,1.823 3.396,2.115
0.313,0.292
10
false
GND

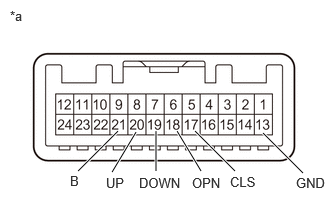

| *a | Component without harness connected
(Sliding Roof Switch (Map Light Sub-assembly)) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 13 (GND) - 18 (OPN) OPEN switch ON 100 Ω or less OPEN switch OFF 10 kΩ or higher 13 (GND) - 17 (CLS) CLOSE switch ON 100 Ω or less CLOSE switch OFF 10 kΩ or higher 13 (GND) - 20 (UP) Roof sunshade OPEN switch ON 100 Ω or less Roof sunshade OPEN switch OFF 10 kΩ or higher 13 (GND) - 19 (DOWN) Roof sunshade CLOSE switch ON 100 Ω or less Roof sunshade CLOSE switch OFF 10 kΩ or higher 13 (GND) - 21 (B) Tilt switch ON 100 Ω or less Tilt switch OFF 10 kΩ or higher
If the result is not as specified, replace the sliding roof switch (map light sub-assembly).
81208
2.INSPECT MAP LIGHT SUB-ASSEMBLY (for Moon Roof)
a.
Check the sliding roof switch (map light sub-assembly).
i.
2.458,1.771 2.042,1.354
true
2.073,1.771 1.823,1.354
true
1.146,1.781 1.396,1.365
true
1.604,1.781 1.604,1.365
true
3.156,1.771 2.74,1.354
true
0.104,0.083 0.417,0.281
0.313,0.198
10
false
*a
1.031,1.813 1.396,2.115
0.365,0.302
10
false
UP
1.438,1.813 1.969,2.146
0.531,0.333
10
false
DOWN
1.969,1.802 2.333,2.104
0.365,0.302
10
false
OPN
2.427,1.792 2.792,2.094
0.365,0.302
10
false
CLS
3.104,1.792 3.417,2.083
0.313,0.292
10
false
GND

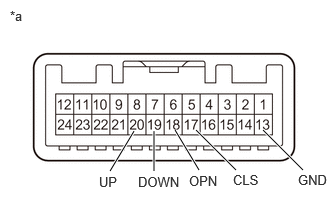

| *a | Component without harness connected
(Sliding Roof Switch (Map Light Sub-assembly)) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 13 (GND) - 18 (OPN) OPEN switch ON 100 Ω or less OPEN switch OFF 10 kΩ or higher 13 (GND) - 17 (CLS) CLOSE switch ON 100 Ω or less CLOSE switch OFF 10 kΩ or higher 13 (GND) - 20 (UP) UP switch ON 100 Ω or less UP switch OFF 10 kΩ or higher 13 (GND) - 19 (DOWN) DOWN switch ON 100 Ω or less DOWN switch OFF 10 kΩ or higher
If the result is not as specified, replace the sliding roof switch (map light sub-assembly).
