RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402624 HEADLIGHT ASSEMBLY(for Single Beam Headlight) A

LIGHTING (EXT) HEADLIGHT ASSEMBLY(for Single Beam Headlight) REASSEMBLY

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 81165 1.INSTALL HEADLIGHT CORD LH (for Type B)

Attach the clamp and install the headlight cord LH.

Hide Display 81176 2.INSTALL NO. 1 HEADLIGHT PROTECTOR LH

0,0 0,0 false

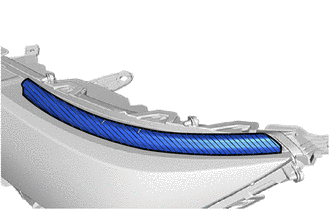

Area to Clean

Clean the application area of the headlight protector LH shown in the illustration.

NOTICE:: Remove any remaining double-sided tape, and then clean and degrease the area.

Remove approximately 30 mm (1.18 in.) of the peeling paper from a new headlight protector LH.

1.385,2.344 1.833,2.646 0.448,0.302 1.396,2.354 1.583,2.521 0.188,0.167 10 true *a

*a	Application Start Position
	Set in this Direction

Align the angle of the headlight protector LH with the application start position, and then set only the part with peeling paper removed into place.

Press the set portion of the part with your finger to secure it.

NOTICE:: Do not slide your finger horizontally, as doing so may stretch the part unnecessarily.

0,0 0,0 false

Remove in this Direction

Align with the curve and set only the part where the peeling type tape was removed from into place.

0,0 0,0 false

Press Area

Press the entire length of the headlight protector LH and install it.

NOTICE:: When pressing, do not slide your finger, as doing so may stretch the part.

Hide Display 81510C 3.INSTALL FRONT TURN SIGNAL LIGHT BULB (for Type B)

0,0 0,0 false

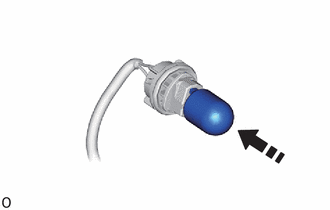

Install in this Direction

Install the front turn signal light bulb to the headlight cord LH.

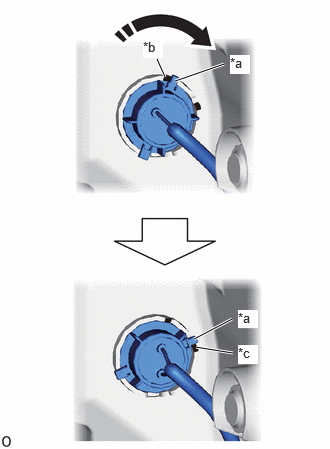

2.042,3.615 2.427,3.677 true 2.333,0.667 1.823,0.844 true 2.417,3.323 2.021,3.531 true 1.635,0.615 1.719,0.802 true 2.396,0.573 2.604,0.771 0.208,0.198 10 true *a 2.479,3.594 2.688,3.792 0.208,0.198 10 true *c 2.479,3.229 2.688,3.417 0.208,0.188 10 true *a 1.49,0.406 1.698,0.604 0.208,0.198 10 true *b

*a	Rib
*b	Unlock Position
*c	Lock Position
	Turn in this Direction

Align the rib of the headlight cord LH with the unlock position, and then turn the headlight cord LH clockwise until the lock position and connect the headlight cord LH.

Hide Display 8113A 4.INSTALL HEADLIGHT FRONT TURN SIGNAL LED (for Type A)

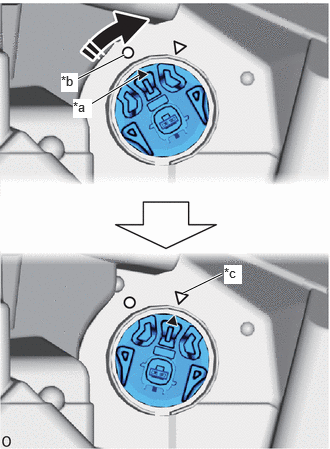

0.948,1.083 1.448,0.781 true 0.802,0.823 1.292,0.573 true 1.906,3.052 2.313,2.854 true 0.76,1.031 0.958,1.229 0.198,0.198 10 true *a 0.635,0.76 0.813,0.958 0.177,0.198 10 true *b 2.333,2.76 2.521,2.958 0.188,0.198 10 true *c

*a	Matchmark
*b	Unlock Position Mark
*c	Lock Position Mark
	Turn in this Direction

Align the matchmark of the headlight front turn signal LED with the unlock position mark, and then turn the headlight front turn signal LED clockwise until the lock position mark to connect the headlight front turn signal LED.

Connect the connector.
