LIGHTING (EXT) HEADLIGHT ASSEMBLY(for Single Beam Headlight) ADJUSTMENT
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
·If it is not possible to correctly adjust the headlight aim, check the headlight assembly.
PROCEDURE
1.PREPARE VEHICLE FOR HEADLIGHT AIMING ADJUSTMENT
Prepare the vehicle:
Make sure that there is no damage to the body around the headlights.
Fill the fuel tank.
Make sure that the oil is filled to the specified level.
Make sure that the coolant is filled to the specified level.
Inflate the tires to the appropriate pressure.
Unload the trunk and vehicle, ensuring that the spare tire, tools and jack are in their original positions.
Have a person of average weight (75 kg, 165 lb) sit in the driver seat.
Vehicles with manually adjustable headlights should be adjusted to "0".
2. PREPARE FOR HEADLIGHT AIMING (Using a Headlight Aim Tester)
Adjust the headlight aim in accordance with the headlight aim tester instructions.
3.PREPARE FOR HEADLIGHT AIMING
Prepare the vehicle.

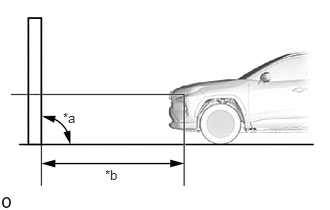

| *a | 90° |
| *b | 10 m or 3 m (32.8 ft. or 9.84 ft.) |
Place the vehicle in a location that is dark enough to clearly observe the cutoff line. The cutoff line is a distinct line, below which light from the headlights can be observed and above which it cannot.
Place the vehicle at a 90° angle to the wall.

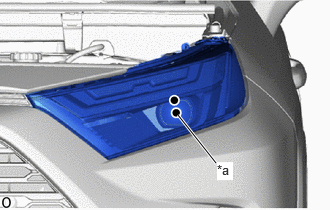

| *a | Headlight Center Mark |
for Type A: Create a 10 m (32.8 ft.) distance between the vehicle (center marks of the headlight) and the wall.

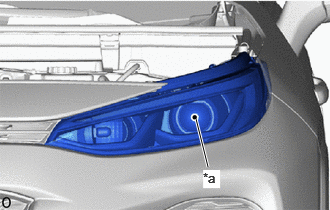

| *a | Headlight Center Mark |
for Type B: Create a 10 m (32.8 ft.) distance between the vehicle (center marks of the headlight) and the wall.
Make sure that the vehicle is on a level surface.
Position the front wheels straight ahead.
Bounce the vehicle up and down to settle the suspension.
- NOTICE:
-
A distance of 10 m (32.8 ft.) between the vehicle (center marks of the headlights) and the wall is necessary for proper aim adjustment. If unavailable, secure a distance of exactly 3 m (9.84 ft.) for the check and adjustment. (The target zone will change with the distance, so follow the instructions in the illustration.)
Prepare a piece of thick white paper (approximately 2 m (6.56 ft.) (height) x 4 m (13.1 ft.) (width)) to use as a screen.
Draw a vertical line down the center of the screen (V line).

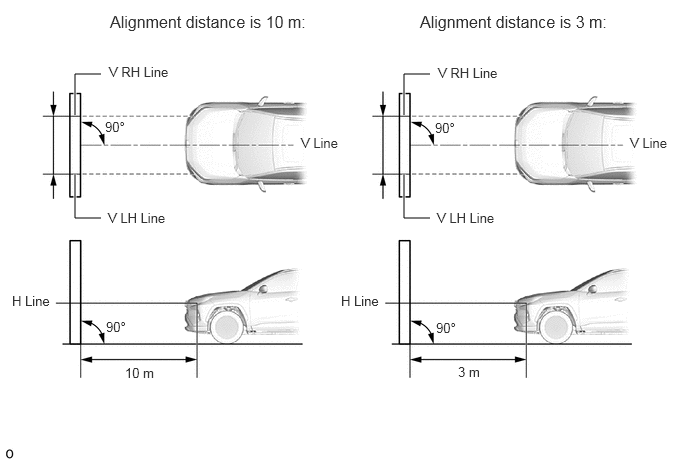

Set the screen as shown in the illustration.
- HINT:
- ·
Stand the screen perpendicular to the ground.
·Align the V line on the screen with the center of the vehicle.
| *a | V LH Line |
| *b | V Line |
| *c | V RH Line |
| *d | H Line |
| *e | Ground |
Draw base lines (H, V LH, and V RH lines) on the screen as shown in the illustration.
- HINT:
- ·
The base lines differ for "low beam inspection" and "high beam inspection".
·Mark the center marks of the headlights on the screen.
H Line (Headlight height):
Draw a horizontal line across the screen so that it passes through the center marks. The H line should be at the same height as the center marks of the headlights.
V LH Line and V RH Line (Center mark position of the left-hand (LH) and right-hand (RH) headlights):
Draw 2 vertical lines so that they intersect the H line at each center mark (aligned with the center marks of the headlight).
4.INSPECT HEADLIGHT AIMING
Cover the headlight on the opposite side to prevent light from the headlight that is not being inspected from affecting the headlight aiming.
- NOTICE:
-
Do not keep the headlight covered for more than 3 minutes. The headlight lens is made of synthetic resin, which may melt or be damaged due to excessive heat.
- HINT:
-
When checking the aim of the high beam headlight, cover the low beam headlight.
Start the engine.

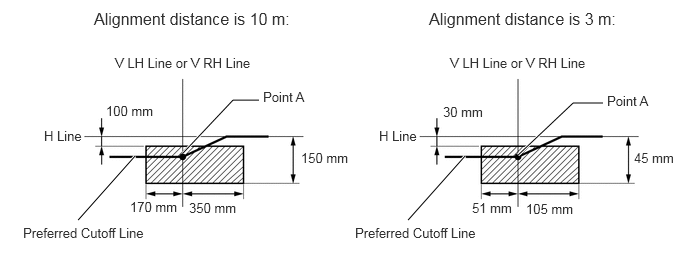

Turn on the headlight and check if the cutoff line matches the preferred cutoff line in the following illustration.
- HINT:
- ·
Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.
·If the alignment distance is 10 m (32.8 ft.):
The horizontal line of the low beam cutoff line should be between 100 mm (3.94 in.) and 150 mm (5.91 in.) below the H line.
·If the alignment distance is 3 m (9.84 ft.):
The horizontal line of the low beam cutoff line should be between 30 mm (1.18 in.) and 45 mm (1.77 in.) below the H line.
·If the alignment distance is 10 m (32.8 ft.):
Point A of the low beam cutoff line should be between 170 mm (6.69 in.) left and 350 mm (1.15 ft.) right of the V LH or V RH line.
·If the alignment distance is 3 m (9.84 ft.):
Point A of the low beam cutoff line should be between 51 mm (2.01 in.) left and 105 mm (4.13 in.) right of the V LH or V RH line.
1.906,1.594 2.427,1.042 2.427,1.042 2.698,1.042 true 5.396,1.615 5.969,1.073 5.969,1.073 6.281,1.073 true 0.813,2.292 1.406,1.625 true 4.25,2.292 4.844,1.625 true 0.979,0.094 3.042,0.458 2.063,0.365 12 false Alignment distance is 10 m: 4.469,0.094 6.521,0.469 2.052,0.375 12 false Alignment distance is 3 m: 1.198,0.573 2.875,0.865 1.677,0.292 10 false V LH Line or V RH Line 3.948,1.333 4.375,1.635 0.427,0.302 10 false H Line 0.458,1.333 0.885,1.635 0.427,0.302 10 false H Line 3.135,1.563 3.667,1.875 0.531,0.313 10 false 150 mm 1.104,1.073 1.708,1.396 0.604,0.323 10 false 100 mm 1.354,2.073 1.896,2.385 0.542,0.313 10 false 170 mm 4.917,2.083 5.375,2.396 0.458,0.313 10 false 51 mm 5.479,2.094 6.052,2.406 0.573,0.313 10 false 105 mm 1.969,2.083 2.542,2.396 0.573,0.313 10 false 350 mm 6.604,1.563 7.052,1.875 0.448,0.313 10 false 45 mm 4.615,1.083 5.073,1.396 0.458,0.313 10 false 30 mm 2.74,0.927 3.208,1.24 0.469,0.313 10 false Point A 6.323,0.969 6.792,1.281 0.469,0.313 10 false Point A 0.24,2.344 1.688,2.563 1.448,0.219 10 false Preferred Cutoff Line 4.688,0.573 6.469,0.948 1.781,0.375 10 false V LH Line or V RH Line 3.698,2.344 5.156,2.646 1.458,0.302 10 false Preferred Cutoff Line
5.ADJUST HEADLIGHT AIMING

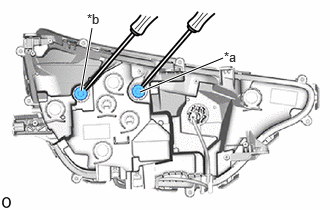

| *a | Vertical and Horizontal Aiming Screw |
| *b | Horizontal Aiming Screw |
for Type A, adjust the aim vertically and horizontally:
Adjust the aim of each headlight so that it is within the specified range by turning each aiming screw with a screwdriver.
- NOTICE:
-
The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it, and then retighten it so that the final turn of the screw is in the clockwise direction.
- HINT:
- ·
The low beam and high beam headlight are a unit. Adjusting the aim on the low beam to the correct position should also result in the high beam adjustment being correct.
·If it is not possible to correctly adjust headlight aim, check the headlight assembly.
·The headlight aim moves up when turning the vertical aiming screw clockwise, and moves down when turning the vertical aiming screw counterclockwise. The headlight aim moves right when turning the horizontal aiming screw clockwise, and moves left when turning the horizontal aiming screw counterclockwise.
| *a | Vertical Aiming Screw |
| *b | Horizontal Aiming Screw |
for Type B, adjust the aim vertically and horizontally:
Adjust the aim of each headlight so that it is within the specified range by turning each aiming screw with a screwdriver.
- NOTICE:
-
The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it, and then retighten it so that the final turn of the screw is in the clockwise direction.
- HINT:
- ·
The low beam and high beam headlight are a unit. Adjusting the aim on the low beam to the correct position should also result in the high beam adjustment being correct.
·If it is not possible to correctly adjust headlight aim, check the headlight assembly.
·The headlight aim moves up when turning the vertical aiming screw clockwise, and moves down when turning the vertical aiming screw counterclockwise. The headlight aim moves right when turning the horizontal aiming screw clockwise, and moves left when turning the horizontal aiming screw counterclockwise.
