LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for Single Beam Headlight)  INSPECTION

Inspect the headlight assembly LH.

i.

1.958,0.938 2.375,0.521 true 2.406,1.594 1.813,1.146 true 1.594,0.906 1.417,0.438 true 1.01,0.802 1.427,0.927 true 1.802,0.917 1.99,0.427 true 2.552,1.333 1.979,1.094 true 2.406,0.417 2.719,0.615 0.313,0.198 10 false LO 1.323,0.281 1.479,0.479 0.156,0.198 10 false B 2.615,1.271 2.771,1.469 0.156,0.198 10 false E 0.896,0.708 1.052,0.906 0.156,0.198 10 false B 1.969,0.271 2.125,0.469 0.156,0.198 10 false E 0.104,0.094 0.479,0.333 0.375,0.24 12 false *a 2.438,1.615 2.594,1.813 0.156,0.198 10 false B

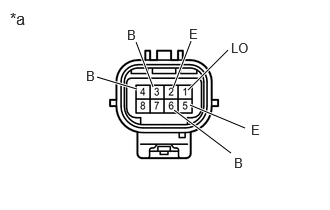

*a	Component without harness connected (Headlight Assembly LH)

Apply auxiliary battery voltage to the connector and check the light illumination.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → Terminal-1(LO) Auxiliary battery negative (-) → Terminal-5(E)	Headlight illuminates
Auxiliary battery positive (+) → Terminal-3(B) Auxiliary battery negative (-) → Terminal-5(E)	Clearance light illuminates
Auxiliary battery positive (+) → Terminal-6(B) Auxiliary battery negative (-) → Terminal-5(E)	Daytime running light illuminates
Auxiliary battery positive (+) → Terminal-4(B) Auxiliary battery negative (-) → Terminal-2(E)	Turn signal light illuminates

If the result is not as specified, replace the headlight assembly LH.

1.958,0.938 2.375,0.521 true 2.406,1.594 1.813,1.146 true 1.594,0.906 1.417,0.438 true 1.01,0.802 1.427,0.927 true 1.802,0.917 1.99,0.427 true 2.552,1.333 1.979,1.094 true 2.406,0.417 2.719,0.615 0.313,0.198 10 false LO 1.323,0.281 1.479,0.479 0.156,0.198 10 false B 2.615,1.271 2.771,1.469 0.156,0.198 10 false E 0.896,0.708 1.052,0.906 0.156,0.198 10 false B 1.969,0.271 2.125,0.469 0.156,0.198 10 false E 0.104,0.094 0.479,0.333 0.375,0.24 12 false *a 2.438,1.615 2.594,1.813 0.156,0.198 10 false B

*a	Component without harness connected (Headlight Assembly RH)

Inspect the headlight assembly RH.

0.167,0.177 0.479,0.333 0.313,0.156 10 false *a

*a	Component without harness connected (Headlight Front Turn Signal LED)

Check the illumination.

Apply auxiliary battery voltage to the headlight front turn signal LED and check that the light illuminates.

OK:

Tester Connection	Specified Condition
Auxiliary battery positive (+) → Terminal-2	Headlight front turn signal LED illuminates
Auxiliary battery negative (-) → Terminal-1

If the result is not as specified, replace the headlight front turn signal LED.

0.167,0.177 0.479,0.333 0.313,0.156 10 false *a

*a	Component without harness connected (Headlight Front Turn Signal LED)

Check the illumination.

Apply auxiliary battery voltage to the headlight front turn signal LED and check that the light illuminates.

OK:

Tester Connection	Specified Condition
Auxiliary battery positive (+) → Terminal-2	Headlight front turn signal LED illuminates
Auxiliary battery negative (-) → Terminal-1

If the result is not as specified, replace the headlight front turn signal LED.
