LIGHTING (INT)  LUGGAGE COMPARTMENT ROOM LIGHT  INSTALLATION


PROCEDURE

Hide 81330 1.INSTALL LUGGAGE COMPARTMENT LIGHT ASSEMBLY

a.
E481267

Connect the connector.


b.

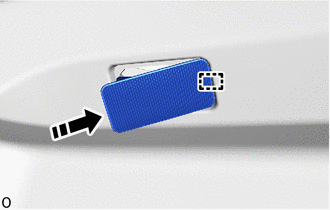

E481268C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide to set the luggage compartment light assembly to the deck trim side panel RH as shown in the illustration.


c.
E481269C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the luggage compartment light assembly as shown in the illustration.
