RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400589 ROOM LIGHT A

LIGHTING (INT)  ROOM LIGHT  INSTALLATION


PROCEDURE

Hide 81240 1.INSTALL NO. 1 ROOM LIGHT ASSEMBLY

a.
E481263

Connect the connector.


b.

Attach the clamp.


c.

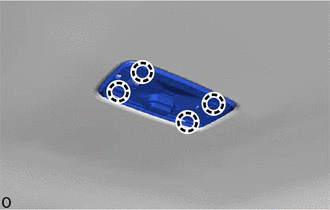

E482681

Attach the claw to install the No. 1 room light housing.


d.

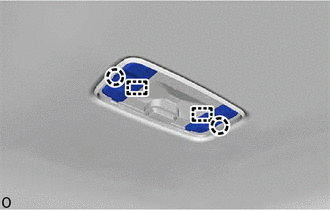

E482682

Attach the claw and guide to install the 2 inner covers.


e.

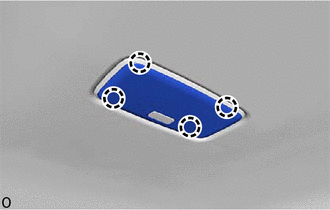

E482683

Attach the claw to install the No. 1 room light lens.
