RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400767 WHEEL OPENING MOULDING(for Rear) A

EXTERIOR PANELS / TRIM  WHEEL OPENING MOULDING(for Rear)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75897A 1.INSTALL NO. 3 MOULDING TAPE

HINT:

When installing the No. 3 moulding tape, heat the quarter panel wheel opening moulding LH and No. 3 moulding tape using a heat light.


Standard:
Item Temperature
Quarter Panel Wheel Opening Moulding LH 20 to 30°C (68 to 86°F)
No. 3 Moulding Tape 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



a.

When reusing the quarter panel wheel opening moulding LH:

i.

Using a heat light, heat the quarter panel wheel opening moulding LH.


ii.

Remove any remaining double-sided tape quarter panel wheel opening moulding LH.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 3 moulding tape with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.





b.

Apply primer to quarter panel wheel opening moulding LH on the installation area of the No. 3 moulding tape using a brush or felt.

B638600
0.052,0.063 0.427,0.302 0.375,0.24 12 false *A 3.813,0.063 4.188,0.302 0.375,0.24 12 false *B
*A for Type A *B for Type B
V100145

Primer - -


NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the No. 3 moulding tape has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Using a heat light, heat the quarter panel wheel opening moulding LH and a new No. 3 moulding tape.

NOTICE:

Do not heat quarter panel wheel opening moulding LH and No. 3 moulding tape excessively.



e.

Remove the release paper from the No. 3 moulding tape.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



f.

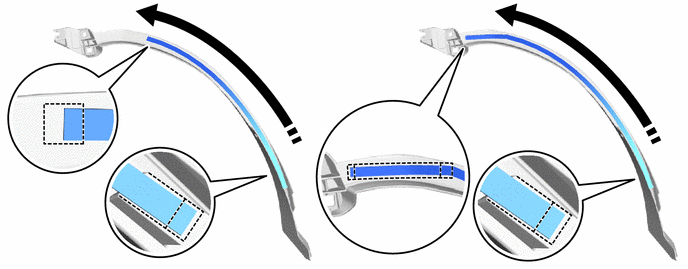

Install the No. 3 moulding tape in the position shown in the illustration.

B638601
3.885,1.688 4.094,1.427 true 5.302,2.448 5.458,2.344 true 1.479,2.417 1.635,2.313 true 0.594,1.063 0.76,0.865 true 1.323,2.385 1.479,2.563 0.156,0.177 10 true *a 4.094,1.25 4.292,1.427 0.198,0.177 10 true *a 0.719,0.708 0.917,0.885 0.198,0.177 10 true *a 0.073,0.052 0.448,0.292 0.375,0.24 12 false *A 3.938,0.063 4.313,0.302 0.375,0.24 12 false *B
*A for Type A *B for Type B
*a Mark-off Line - -
V113147

Install in this Direction - -


NOTICE:

The application strength of the No. 3 moulding tape will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:
·

Make sure that the end of the No. 3 moulding tape is between the mark-off lines.

·

Apply pressure so that it does not lift up from the quarter panel wheel opening moulding LH.




Hide 75896A 2.INSTALL NO. 2 MOULDING TAPE (for Type A)

HINT:

When installing the No. 2 moulding tape, heat the quarter panel wheel opening moulding LH and No. 2 moulding tape using a heat light.


Standard:
Item Temperature
Quarter Panel Wheel Opening Moulding LH 20 to 30°C (68 to 86°F)
No. 2 Moulding Tape 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



a.

When reusing the quarter panel wheel opening moulding LH:

i.

Using a heat light, heat the quarter panel wheel opening moulding LH.


ii.

Remove any remaining double-sided tape quarter panel wheel opening moulding LH.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 2 moulding tape with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.





b.

Apply primer to quarter panel wheel opening moulding LH on the installation area of the No. 2 moulding tape using a brush or felt.

B525759
0,0 0,0 false
V100145

Primer - -


NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the No. 2 moulding tape has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Using a heat light, heat the quarter panel wheel opening moulding LH and a new No. 2 moulding tape.

NOTICE:

Do not heat quarter panel wheel opening moulding LH and No. 2 moulding tape excessively.



e.

Remove the release paper from the No. 2 moulding tape.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



f.

Install the No. 2 moulding tape in the position shown in the illustration.

B525760
3.406,1.771 3.323,1.49 3.323,1.49 3.49,1.76 true 2.427,1.802 2.417,1.594 2.417,1.594 2.469,1.792 true 2.302,1.427 2.615,1.625 0.313,0.198 10 false *a 3.219,1.323 3.531,1.521 0.313,0.198 10 false *a
*a Mark-off Line -


NOTICE:

The application strength of the No. 2 moulding tape will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:
·

Make sure that the end of the No. 2 moulding tape is between the mark-off lines.

·

Apply pressure so that it does not lift up from the quarter panel wheel opening moulding LH.




Hide 75895A 3.INSTALL NO. 1 MOULDING TAPE

HINT:

When installing the No. 1 moulding tape, heat the quarter panel wheel opening moulding LH and No. 1 moulding tape using a heat light.


Standard:
Item Temperature
Quarter Panel Wheel Opening Moulding LH 20 to 30°C (68 to 86°F)
No. 1 Moulding Tape 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



a.

When reusing the quarter panel wheel opening moulding LH:

i.

Using a heat light, heat the quarter panel wheel opening moulding LH.


ii.

Remove any remaining double-sided tape quarter panel wheel opening moulding LH.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 1 moulding tape with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.





b.

Apply primer to quarter panel wheel opening moulding LH on the installation area of the No. 1 moulding tape using a brush or felt.

B525757
0,0 0,0 false
V100145

Primer - -


NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the No. 1 moulding tape has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Using a heat light, heat the quarter panel wheel opening moulding LH and a new No. 1 moulding tape.

NOTICE:

Do not heat quarter panel wheel opening moulding LH and No. 1 moulding tape excessively.



e.

Remove the release paper from the No. 1 moulding tape.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



f.

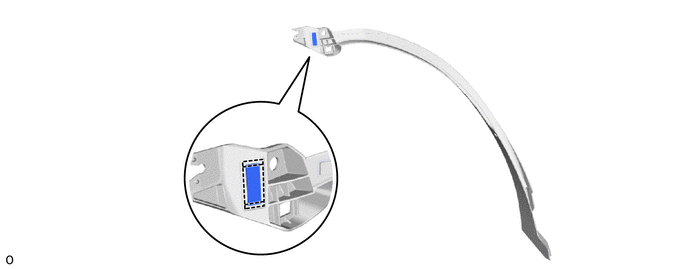

Install the No. 1 moulding tape in the position shown in the illustration.

B525758
2.5,2.417 2.667,2.417 2.667,2.417 2.667,2.167 true 2.604,1.708 2.604,1.375 2.604,1.375 2.771,1.375 true 2.302,2.323 2.531,2.521 0.229,0.198 10 false *a 2.823,1.271 3.052,1.469 0.229,0.198 10 false *a
*a Mark-off Line - -


NOTICE:

The application strength of the No. 1 moulding tape will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:
·

Make sure that the end of the No. 1 moulding tape is between the mark-off lines.

·

Apply pressure so that it does not lift up from the quarter panel wheel opening moulding LH.




Hide 75874 4.INSTALL QUARTER PANEL WHEEL OPENING MOULDING LH

HINT:

When installing the quarter panel wheel opening moulding LH, heat the vehicle body and quarter panel wheel opening moulding LH using a heat light.


Standard:
Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F)
Quarter Panel Wheel Opening Moulding LH 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body and quarter panel wheel opening moulding LH excessively.


a.

Clean the vehicle body surface.

i.

Using a heat light, heat the vehicle body surface.


ii.

Remove any remaining double-sided tape from the vehicle body.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the quarter panel wheel opening moulding LH with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.





b.

Using a heat light, heat the vehicle body and quarter panel wheel opening moulding LH.

NOTICE:

Do not heat the vehicle body and quarter window upper moulding LH excessively.



c.

Remove the release paper from the No. 2 moulding tape and No. 1 moulding tape.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



d.

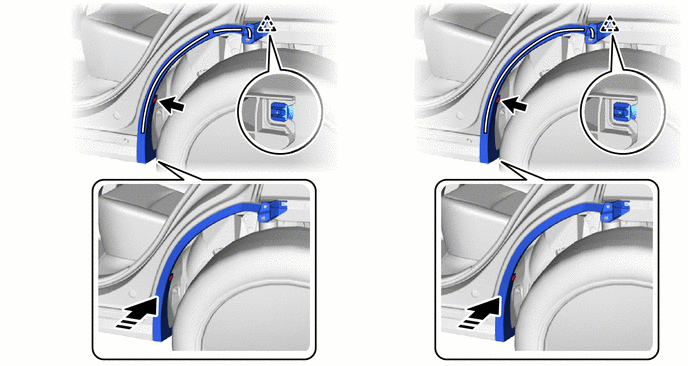

Attach the clip and double-sided tape to install the quarter panel wheel opening moulding LH as shown in the illustration.

B638599
2.573,0.281 2.448,0.094 2.448,0.094 2.229,0.094 true 1.802,0.573 1.677,0.385 1.677,0.385 1.458,0.385 true 6.135,0.281 6.01,0.094 6.01,0.094 5.792,0.094 true 2.26,0.531 2.427,0.531 2.427,0.531 2.427,0.313 true 5.458,0.51 5.333,0.323 5.333,0.323 5.115,0.323 true 5.635,0 5.792,0.198 0.156,0.198 10 true *a 2.052,0.021 2.208,0.219 0.156,0.198 10 true *a 2.094,0.458 2.25,0.656 0.156,0.198 10 true *a 1.313,0.292 1.469,0.49 0.156,0.198 10 true *a 4.958,0.229 5.115,0.427 0.156,0.198 10 true *a 0.229,0.083 0.604,0.323 0.375,0.24 12 false *A 3.844,0.073 4.219,0.313 0.375,0.24 12 false *B
*A for Type A *B for Type B
*a Double-sided Tape - -
V113147

Install in this Direction - -


NOTICE:

The application strength of the No. 2 moulding tape and No. 1 moulding tape will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:

Apply pressure so that it does not lift up from the vehicle body.



e.

Install the clip.


Hide 75606A 5.INSTALL QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH (except Off Road Package)

a.

When reusing the front fender moulding sub-assembly LH:

i.
B585294

Install the 3 clips.

NOTICE:

Replace the clip with a new one.




b.
B525746
0,0 0,0 false
V113147

Install in this Direction

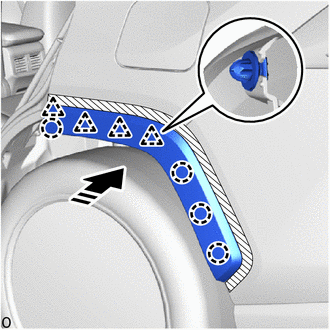

Attach the claw and clip to install the quarter outside moulding sub-assembly LH.


c.

Remove the protective tape.


d.
B525743
0,0 0,0 false
V100135

Screw
V100136

Clip


Install the screw and 2 clips.


Hide 75606A 6.INSTALL QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH (for Off Road Package)

HINT:

When installing the quarter outside moulding sub-assembly LH, heat the vehicle body and quarter outside moulding sub-assembly LH using a heat light.


Standard:
Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F)
Quarter Outside Moulding Sub-assembly LH 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body and quarter outside moulding sub-assembly LH excessively.


a.

Clean the vehicle body surface.

i.

Using a heat light, heat the vehicle body surface.


ii.

Remove any remaining double-sided tape from the vehicle body.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the quarter outside moulding sub-assembly LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until sufficiently removed it.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.





b.

Install the quarter outside moulding sub-assembly LH.

i.

Using a heat light, heat the vehicle body.


ii.

Remove the release paper from the face of the No. 1 body outside moulding pad.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.




c.
B525903
1.177,0.823 1.26,0.49 1.26,0.49 1.427,0.49 true 1.469,0.406 1.667,0.583 0.198,0.177 10 true *a
*a Double-sided Tape
V113147

Install in this Direction

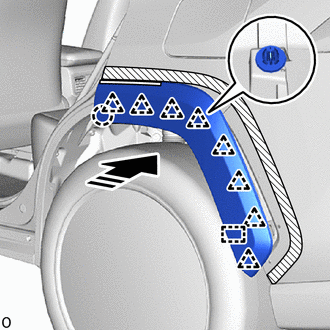

Attach the guide and claw and clip and double-sided tape to install the quarter outside moulding sub-assembly LH.

HINT:

Press the quarter outside moulding sub-assembly LH firmly to install it.



d.

Remove the protective tape.


e.
B525898
0,0 0,0 false
V100135

Screw
V100136

Clip


Install the screw and 2 clips.
