SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for GTMC Made Power Seat)  INSPECTION

1.729,1.063 1.719,0.469 true 1.917,1.052 2.146,0.5 true 0.167,0.167 0.479,0.365 0.313,0.198 10 false *a 1.677,0.271 1.76,0.406 0.083,0.135 10 false + 2.156,0.313 2.313,0.51 0.156,0.198 10 false E

*a	Component without harness connected (Front Seat Inner Belt Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the front seat inner belt assembly LH.
3 (+) - 2 (E)	Seat belt unfastened	Below 1 Ω
	Seat belt fastened	10 kΩ or higher

1.458,0.313 1.885,0.583 0.427,0.271 1.479,2.792 1.906,3.063 0.427,0.271 1.698,1.875 1.698,1.323 true 2.021,1.885 1.875,1.323 true 1.365,1.885 1.521,1.323 true 0.927,1.26 1.292,1.26 true 0.073,0.063 0.385,0.26 0.313,0.198 10 false *a 1.552,0.385 1.865,0.583 0.313,0.198 10 false M38 1.646,2.833 1.958,3.031 0.313,0.198 10 false A 1.677,1.927 1.833,2.125 0.156,0.198 10 false + 2.01,1.917 2.25,2.167 0.24,0.25 10 false E 0.792,1.167 0.948,1.365 0.156,0.198 10 false + 1.292,1.917 1.531,2.167 0.24,0.25 10 false E

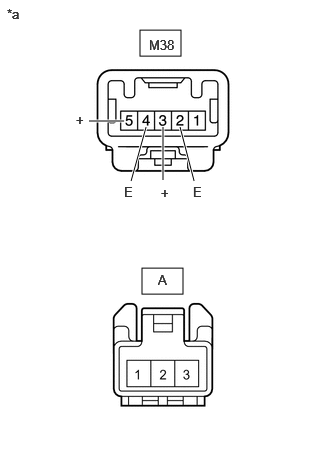

*a	Component without harness connected (Front Seat Inner Belt Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the front seat inner belt assembly RH.
M38-3 (+) - M38-2 (E)	Seat belt unfastened	Below 1 Ω
	Seat belt fastened	10 kΩ or higher
M38-5 (+) - A-1	Always	Below 1 Ω
M38-4 (E) - A-3	Always	Below 1 Ω
