FRONT SEAT CUSHION HEATER(for GTMC Made Power Seat)
G
SEAT FRONT SEAT CUSHION HEATER(for GTMC Made Power Seat) INSPECTION
PROCEDURE
71072S
1.INSPECT SEPARATE TYPE FRONT SEAT CUSHION COVER (FRONT SEAT CUSHION HEATER) (for Driver Side)
a.
Measure the resistance according to the value(s) in the table below.
2.229,0.135 2.542,0.292
0.313,0.156
10
false
*a
4.927,0.333 5.24,0.49
0.313,0.156
10
false
*b
0.167,0.125 0.479,0.281
0.313,0.156
10
false
*c

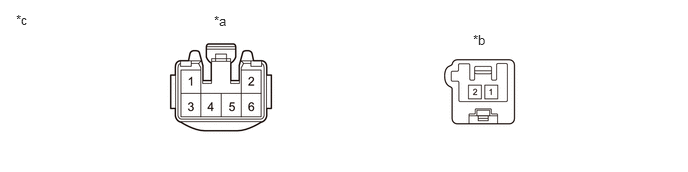

| *a | Connector A | *b | Connector B |
| *c | Component without harness connected
(Separate Type Front Seat Cushion Cover (Front Seat Cushion Heater)) |
- | - |
- Standard Resistance:
Tester Connection Condition Specified Condition A-1 - A-2 Always 20°C (68°F) 5.0 to 6.1 Ω A-1 - A-6 A-1 - B-2
71071S
2.INSPECT SEPARATE TYPE FRONT SEAT CUSHION COVER (FRONT SEAT CUSHION HEATER) (for Front Passenger Side)
a.
Measure the resistance according to the value(s) in the table below.
2.229,0.135 2.542,0.292
0.313,0.156
10
false
*a
4.927,0.333 5.24,0.49
0.313,0.156
10
false
*b
0.167,0.125 0.479,0.281
0.313,0.156
10
false
*c
| *a | Connector A | *b | Connector B |
| *c | Component without harness connected
(Separate Type Front Seat Cushion Cover (Front Seat Cushion Heater)) |
- | - |
- Standard Resistance:
Tester Connection Condition Specified Condition A-1 - A-2 Always 20°C (68°F) 5.0 to 6.1 Ω A-1 - A-6 A-1 - B-2
