SEAT  POWER SEAT SWITCH(for GTMC Made)  INSPECTION

0.781,1 1.146,0.427 true 0.969,1.406 1.219,1.135 true 1.833,0.833 2.229,0.26 true 2.927,1.438 2.594,1.01 true 2.281,2.49 2.698,2.333 true 1.083,2.531 0.656,2.427 true 2.073,2.458 2.354,2.104 true 1.885,2.469 1.76,2.094 true 1.333,2.49 1.052,2.104 true 1.073,2.719 0.563,2.833 true 1.344,2.771 0.76,3.052 true 2.26,3.083 1.896,2.771 true 2.656,3.052 2.104,2.76 true 2.927,2.813 2.344,2.74 true 1.833,3.125 1.729,2.781 true 1.417,3.083 1.552,2.781 true 1.104,0.24 1.417,0.396 0.313,0.156 10 false *a 0.802,1.448 1.115,1.604 0.313,0.156 10 false *b 2.208,0.073 2.521,0.229 0.313,0.156 10 false *c 2.896,1.458 3.208,1.615 0.313,0.156 10 false *d 0.031,1.729 0.344,1.885 0.313,0.156 10 false *e 2.781,2.229 3.396,2.427 0.615,0.198 10 false SLDR 2.406,1.875 3.021,2.073 0.615,0.198 10 false R 1.542,1.844 2.156,2.042 0.615,0.198 10 false RCLR 0.813,1.844 1.427,2.042 0.615,0.198 10 false SLDF 0.229,2.26 0.844,2.458 0.615,0.198 10 false RCLF 0.375,2.802 0.625,2.948 0.25,0.146 10 false E 0.521,3.094 0.969,3.292 0.448,0.198 10 false FDWN 1.156,3.135 1.771,3.333 0.615,0.198 10 false LDWN 1.833,3.156 2.042,3.323 0.208,0.167 10 false H 2.25,3.135 2.552,3.313 0.302,0.177 10 false LUP 2.813,3.063 3.135,3.281 0.323,0.219 10 false FUP 3.042,2.75 3.375,2.958 0.333,0.208 10 false B

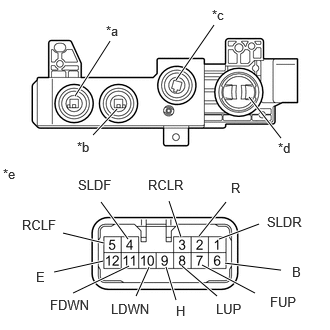

*a	Slide and Front Vertical Switch
*b	Slide and Lifter Switch
*c	Reclining Switch
*d	Lumbar Support Switch
*e	Component without harness connected (Front Power Seat Switch LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Slide Switch:

Tester Connection	Switch Condition	Specified Condition
4 (SLDF) - 6 (B)	Front position	Below 1 Ω
1 (SLDR) - 12 (E)
4 (SLDF) - 12 (E)	Neutral	Below 1 Ω
1 (SLDR) - 12 (E)
4 (SLDF) - 12 (E)	Rear position	Below 1 Ω
1 (SLDR) - 6 (B)

Front Vertical Switch:

Tester Connection	Switch Condition	Specified Condition
7 (FUP) - 6 (B)	Up position	Below 1 Ω
11 (FDWN) - 12 (E)
7 (FUP) - 12 (E)	Neutral	Below 1 Ω
11 (FDWN) - 12 (E)
7 (FUP) - 12 (E)	Down position	Below 1 Ω
11 (FDWN) - 6 (B)

Lifter Switch:

Tester Connection	Switch Condition	Specified Condition
8 (LUP) - 6 (B)	Up position	Below 1 Ω
10 (LDWN) - 12 (E)
8 (LUP) - 12 (E)	Neutral	Below 1 Ω
10 (LDWN) - 12 (E)
8 (LUP) - 12 (E)	Down position	Below 1 Ω
10 (LDWN) - 6 (B)

Reclining Switch:

Tester Connection	Switch Condition	Specified Condition
5 (RCLF) - 6 (B)	Front position	Below 1 Ω
3 (RCLR) - 12 (E)
5 (RCLF) - 12 (E)	Neutral	Below 1 Ω
3 (RCLR) - 12 (E)
5 (RCLF) - 12 (E)	Rear position	Below 1 Ω
3 (RCLR) - 6 (B)

Lumbar Support Switch:

Tester Connection	Switch Condition	Specified Condition
9 (H) - 6 (B)	Hold position	Below 1 Ω
2 (R) - 12 (E)
9 (H) - 12 (E)	Neutral	Below 1 Ω
2 (R) - 12 (E)
9 (H) - 12 (E)	Release position	Below 1 Ω
2 (R) - 6 (B)

If the result is not as specified, replace the front power seat switch LH.

1.979,1.302 2.698,1.896 2.698,1.896 2.479,1.302 true 1.927,0.688 1.313,1.073 true 0.75,2.76 1.156,2.76 true 1.115,3.135 1.406,2.823 true 1.5,3.125 1.615,2.823 true 1.938,3.156 1.823,2.823 true 2.396,3.156 2.021,2.813 true 2.26,2.76 2.667,2.76 true 2.677,1.917 2.99,2.073 0.313,0.156 10 false *a 1.958,0.552 2.271,0.708 0.313,0.156 10 false *b 0.49,2.115 0.802,2.271 0.313,0.156 10 false *c 1.313,3.156 1.927,3.354 0.615,0.198 10 false SLDF 0.833,3.156 1.448,3.354 0.615,0.198 10 false SLDR 2.323,3.177 2.938,3.375 0.615,0.198 10 false RCLF 1.792,3.188 2.406,3.385 0.615,0.198 10 false RCLR 2.719,2.667 2.948,2.896 0.229,0.229 10 false E 0.552,2.656 0.729,2.875 0.177,0.219 10 false B

*a	Slide Switch
*b	Reclining Switch
*c	Component without harness connected (Front Power Seat Switch RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Slide Switch:

Tester Connection	Switch Condition	Specified Condition
4 (SLDF) - 6 (B)	Front position	Below 1 Ω
5 (SLDR) - 1 (E)
4 (SLDF) - 1 (E)	Neutral
5 (SLDR) - 1 (E)
5 (SLDR) - 6 (B)	Rear position
4 (SLDF) - 1 (E)

Reclining Switch:

Tester Connection	Switch Condition	Specified Condition
2 (RCLF) - 6 (B)	Front position	Below 1 Ω
3 (RCLR) - 1 (E)
2 (RCLF) - 1 (E)	Neutral
3 (RCLR) - 1 (E)
3 (RCLR) - 6 (B)	Rear position
2 (RCLF) - 1 (E)

If the result is not as specified, replace the front power seat switch RH.
