RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0403079 COMBINATION SWITCH G

HEATING / AIR CONDITIONING  COMBINATION SWITCH  INSPECTION


PROCEDURE

Hide 84010D 1.INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY

a.

Remove the shift lever knob sub-assembly.

i.

for HV Model:

Click hereDrivetrain>P710 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL


ii.

for CVT:

·

K121:

Click hereDrivetrain>K121 (CVT)>SHIFT LEVER KNOB>REMOVAL

·

K121F:

Click hereDrivetrain>K121F (CVT)>SHIFT LEVER KNOB>REMOVAL




b.

Remove the upper console panel sub-assembly.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL


c.

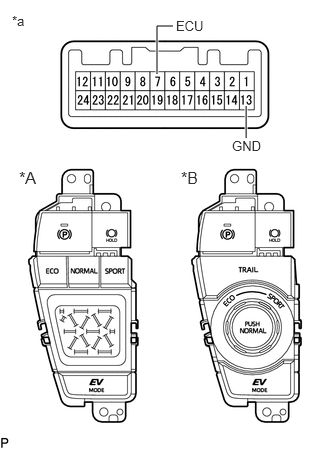

C407243C05
2.563,1.438 2.563,1.104 true 1.635,0.771 1.635,0.271 1.635,0.271 1.802,0.271 true 1.833,0.188 2.24,0.396 0.406,0.208 10 false ECU 2.417,1.438 2.802,1.667 0.385,0.229 10 false GND 0.198,1.75 0.448,2.021 0.25,0.271 12 false *A 0.125,0.135 0.396,0.365 0.271,0.229 10 false *a 1.885,1.75 2.135,2.021 0.25,0.271 12 false *B
*A for 2WD
*B for AWD
*a Component without harness connected
(Integration Control and Panel Assembly (Combination Switch))


for HV Model:

i.

Inspect the ECO mode switch

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for 2WD):
Tester Connection Condition Specified Condition
7 (ECU) - 13 (GND) ECO mode switch being pushed and held Below 1 Ω
ECO mode switch not pushed 10 kΩ or higher


Standard Resistance (for AWD):
Tester Connection Condition Specified Condition
7 (ECU) - 13 (GND) ECO mode switch being turned and held Below 1 Ω
ECO mode switch not turned 10 kΩ or higher


If the result is not as specified, replace the integration control and panel assembly (combination switch).



d.

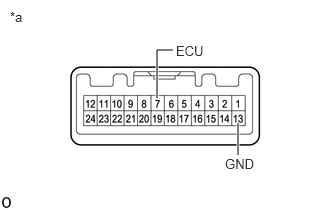

C405113C04
2.479,1.615 2.479,1.281 true 1.635,1.021 1.635,0.521 1.635,0.521 1.802,0.521 true 2.344,1.625 2.698,1.854 0.354,0.229 10 false GND 0.104,0.094 0.417,0.292 0.313,0.198 10 false *a 1.833,0.448 2.188,0.677 0.354,0.229 10 false ECU
*a Component without harness connected
(Integration Control and Panel Assembly (Combination Switch))


for CVT:

i.

Inspect the ECO mode switch

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
7 (ECU) - 13 (GND) ECO mode switch being pushed and held Below 1 Ω
ECO mode switch not pushed 10 kΩ or higher


If the result is not as specified, replace the integration control and panel assembly (combination switch).



e.

Install the upper console panel sub-assembly.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION


f.

Install the shift lever knob sub-assembly.

i.

for HV Model:

Click hereDrivetrain>P710 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>INSTALLATION


ii.

for CVT:

·

K121:

Click hereDrivetrain>K121 (CVT)>SHIFT LEVER KNOB>INSTALLATION

·

K121F:

Click hereDrivetrain>K121F (CVT)>SHIFT LEVER KNOB>INSTALLATION
