M20C-FKS EMISSION CONTROL  DIFFERENTIAL PRESSURE SENSOR  REMOVAL


PROCEDURE

Hide 89481B 1.REMOVE DIFFERENTIAL PRESSURE SENSOR

a.

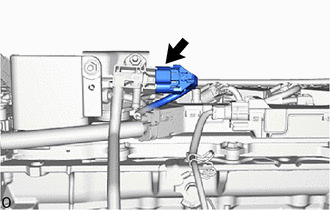

A539736

Disconnect the differential pressure sensor connector.


b.

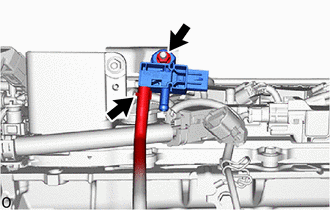

A539737

Slide the clip and disconnect the vacuum transmitting hose assembly from the differential pressure sensor.


c.

Remove the nut and differential pressure sensor from the sensor bracket.


d.

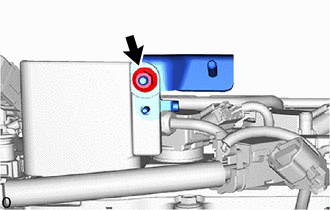

A539738

Remove the nut and sensor bracket from the fuel pump flange.


Hide 25760 2.REMOVE VACUUM TRANSMITTING HOSE ASSEMBLY

a.

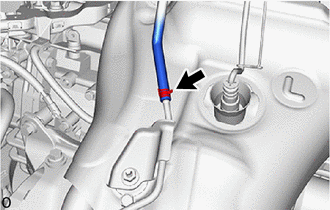

A539739

Slide the clip and remove the vacuum transmitting hose assembly from the No. 1 vacuum transmitting pipe sub-assembly.
