M20D-FKS STARTING STARTER INSTALLATION
PROCEDURE
28100
1.INSTALL STARTER ASSEMBLY
Install the starter assembly to the cylinder block sub-assembly with the 2 bolts.
- Torque:
- 46 N*m (469 kgf*cm, 34 ft.*lbf)
Connect the No. 2 engine wire to terminal 30 with the nut.
- Torque:
- 9.8 N*m (100 kgf*cm, 87 in.*lbf)
Close the terminal cap.
Connect the starter assembly connector.
Attach the clamp.
Install the engine wire to the transaxle with the bolt.
- Torque:
- 10 N*m (102 kgf*cm, 7 ft.*lbf)
11363A

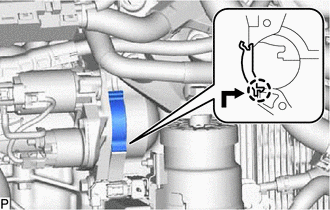

2.INSTALL FLYWHEEL HOUSING SIDE COVER
Align the protrusion with the cylinder block sub-assembly and attach the claw as shown in the illustration to install the flywheel housing side cover.
- NOTICE:
- ·
Make sure the claw makes a click sound, indicating that it fits tightly.
·Replace the flywheel housing side cover with a new one if the claw does not fit tightly or is deformed.
3.INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
17750A
4.INSTALL NO. 1 INLET AIR CLEANER
12601B
5.INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
12361A
6.INSTALL FRONT ENGINE MOUNTING INSULATOR
7.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
