K121F CVT  DIFFERENTIAL CASE  INSPECTION

2.604,2.875 2.76,2.875 2.76,2.875 2.76,2.406 true 2.302,2.802 2.635,3 0.333,0.198 10 false SST

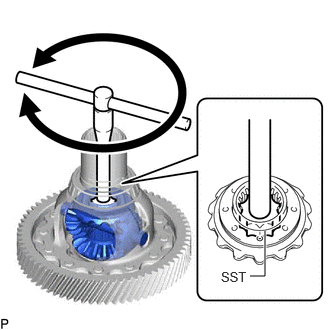

Using SST, rotate the differential side gear as shown in the illustration.

SST

09528-52010  (09528-05030)

Standard:

The front differential side gear does not lock when rotated in either direction.

If the result is not as specified, replace the differential case sub-assembly.
