K121F CVT  VALVE BODY ASSEMBLY  INSTALLATION

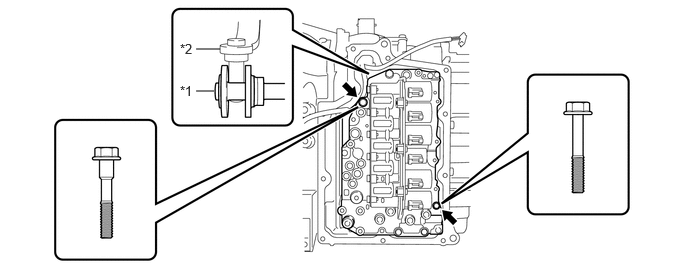

Align the slit portion of the manual valve and the manual valve link lever sub-assembly as shown in the illustration, and temporarily install the transmission valve body assembly to the transaxle case sub-assembly with the 2 bolts.

2.042,0.948 2.229,0.948 false 2.042,0.51 2.292,0.51 false 1.875,0.865 2.146,1.104 0.271,0.24 10 false *1 1.875,0.427 2.146,0.625 0.271,0.198 10 false *2

*1

Manual Valve

*2

Manual Valve Link Lever Sub-assembly

Bolt Length:

40 mm (1.57 in.)

0.781,1.281 0.938,1.479 0.156,0.198 10 true A 0.74,1.615 0.896,1.813 0.156,0.198 10 true B 0.635,2.469 0.792,2.667 0.156,0.198 10 true B 1.365,3.177 1.521,3.375 0.156,0.198 10 true B 1.781,2.458 1.938,2.656 0.156,0.198 10 true B 2.083,0.229 2.24,0.427 0.156,0.198 10 true B 2.76,1.573 2.917,1.771 0.156,0.198 10 true A 2.75,1.813 2.906,2.01 0.156,0.198 10 true A 2.771,2.167 2.927,2.365 0.156,0.198 10 true A

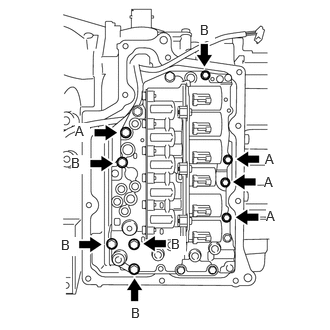

Temporarily install the 9 bolts.

Bolt Length:

Bolt (A)	Bolt (B)
40 mm (1.57 in.)	55 mm (2.17 in.)

Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the temperature sensor.

Connect the temperature sensor to the transmission valve body assembly.

NOTICE:

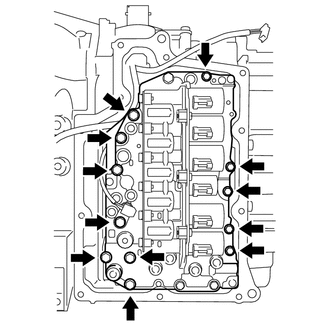

To prevent it from being pinched between the transmission valve body assembly and the transaxle side cover sub-assembly, do not let the transmission wire ride up over the area shown in the illustration.

0,0 0,0 false

Do not let transmission wire protrude into this area.

-

-

Tighten the 12 bolts.

Torque:

10.8 N*m (110 kgf*cm, 8 ft.*lbf)
