RM36D0EC _52 Drivetrain _138817 K121F CVT _0584982 REVOLUTION SENSOR(NT SENSOR) A

K121F CVT REVOLUTION SENSOR(NT SENSOR) REMOVAL

PROCEDURE

Hide Display 53895B 1.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0303,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0303,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0303,

Hide Display 53896B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0304,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0304,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0304,

Hide Display 51441 3.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0003,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0003,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0003,

Hide Display 51420 4.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0004,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0004,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0004,

Hide Display 53737D 5.REMOVE FRONT FENDER APRON SEAL LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0141,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0141,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0141,

Hide Display 89413N 6.REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

a.

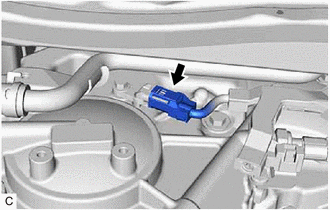

C400607

Disconnect the transmission revolution sensor (NT) connector.

b.

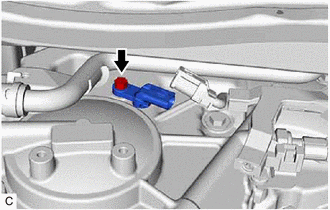

C400608

Remove the bolt and transmission revolution sensor (NT) from the rear transaxle case sub-assembly.

c.

C395501

Remove the O-ring from the transmission revolution sensor (NT).
