POWER OUTLETS (INT)  WIRELESS CHARGER ASSEMBLY  INSTALLATION

85535B 1.INSTALL NO. 1 POWER OUTLET SOCKET COVER

85530 2.INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

86190C 3.INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY

861C0 4.INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

HINT:

0.167,0.167 0.5,0.333 0.333,0.167 10 false *A 0.167,2.333 0.5,2.5 0.333,0.167 10 false *B

*A	for Type A
*B	for Type B

The shape of the parts is different as shown in the illustration.

a.

Connect the 3 connectors and attach the clamp.

0.25,0.417 0.583,0.667 0.333,0.25 10 false *A 3.667,0.417 4,0.667 0.333,0.25 10 false *B

*A

for Type A

*B

for Type B

b.

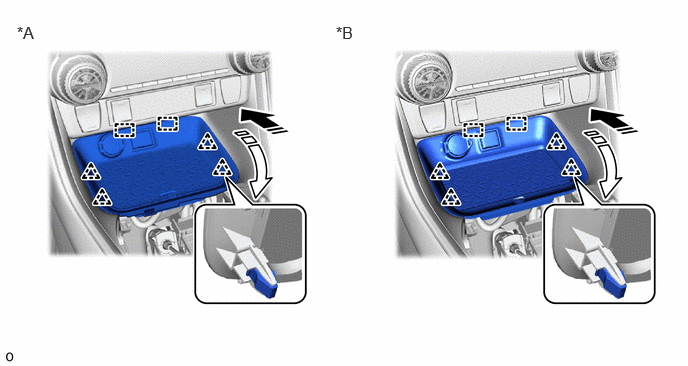

Attach the guide in the direction indicated by the arrow (1) shown in the illustration.

0.177,0.24 0.479,0.469 0.302,0.229 12 false *A 3.5,0.24 3.833,0.542 0.333,0.302 12 false *B

*A	for Type A	*B	for Type B
	Install in this Direction (1)		Install in this Direction (2)

c.

Rotate in the direction indicated by the arrow (2) shown in the illustration to attach the clip and install the mobile wireless charger cradle assembly.

58804A 5.INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

33504F 6.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
