POWER OUTLETS (INT)  POWER OUTLET SOCKET(for Instrument Panel)  INSTALLATION

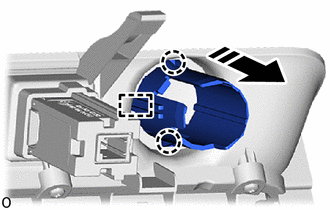

85535B 1.INSTALL NO. 1 POWER OUTLET SOCKET COVER

a.

0,0 0,0 false

Install in this Direction

Attach the guide and claw to install the No. 1 power outlet socket cover.

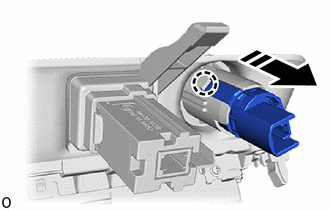

85530 2.INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

a.

0,0 0,0 false

Install in this Direction

Attach the claw and install the No. 1 power outlet socket assembly as shown in the illustration.

861C0 3.INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

58813 4.INSTALL UPPER CONSOLE BOX (w/o Wireless Charger)

58804A 5.INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

33504F 6.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
