RM36D0EC _58 Vehicle Interior _083105 POWER OUTLETS (INT) _0402365 POWER OUTLET SOCKET(for Instrument Panel) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Instrument Panel) REMOVAL

PROCEDURE

Hide Display 33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

for CVT:

K121: Click hereDrivetrain>K121 (CVT)>SHIFT LEVER KNOB>REMOVAL202304,999999,_52,_138176,_0579407,RM1000000029ENY,

K121F: Click hereDrivetrain>K121F (CVT)>SHIFT LEVER KNOB>REMOVAL202304,999999,_52,_138817,_0584991,RM1000000029ILS,

for HV Model:

Click hereDrivetrain>P710 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL201910,999999,_52,_083113,_0400521,RM100000001J8EL,

Hide Display 58804A 2.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0002,

Hide Display 861C0 3.REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGER ASSEMBLY>REMOVAL202304,999999,_58,_083105,_0578541,RM1000000029HC0_01_0003,

Hide Display 58813 4.REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0004,

Hide Display 85530 5.REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

0,0 0,0 false

	Remove in this Direction
	Protective Tape

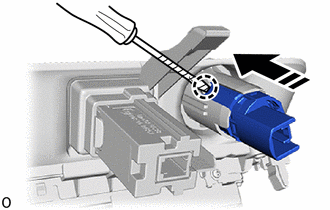

Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.

Hide Display 85535B 6.REMOVE NO. 1 POWER OUTLET SOCKET COVER

0,0 0,0 false

Remove in this Direction

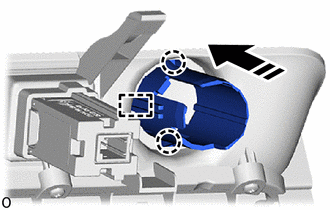

Detach the claw and guide to remove the No. 1 power outlet socket cover.
