RM36D0EC _58 Vehicle Interior _083105 POWER OUTLETS (INT) _0402363 POWER OUTLET SOCKET(for Console Box Front Side) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Console Box Front Side) REMOVAL

PROCEDURE

Hide Display 58825A 1.REMOVE CONSOLE BOX POCKET (w/Console Box Tray)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0011,

Hide Display 58913A 2.REMOVE NO. 3 BOX PANEL

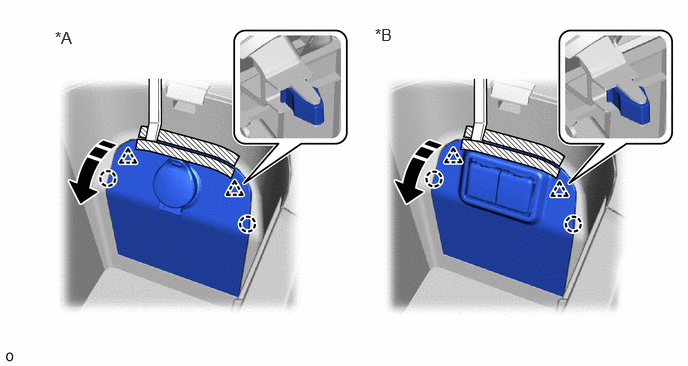

Apply protective tape as shown in the illustration.

3.906,0.26 4.198,0.5 0.292,0.24 12 false *B 0.573,0.292 0.865,0.531 0.292,0.24 12 false *A

*A	w/o USB Charger	*B	w/ USB Charger
	Remove in this Direction		Protective Tape

Using moulding remover A, detach the clip and claw.

Rotate the No. 3 box panel in the direction indicated by the arrow shown in the illustration.

Disconnect the connector.

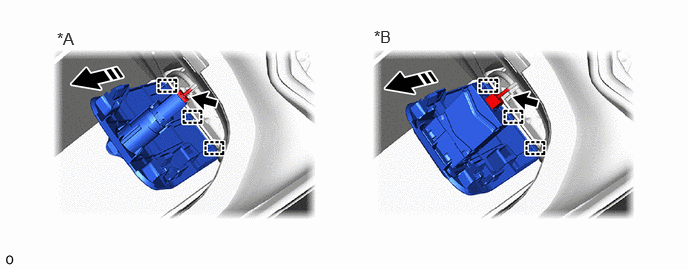

0.594,0.302 1.01,0.646 0.417,0.344 12 false *A 3.896,0.281 4.313,0.625 0.417,0.344 12 false *B

*A	w/o USB Charger	*B	w/ USB Charger
	Remove in this Direction	-	-

Detach the guide to remove the No. 3 box panel as shown in the illustration.

Hide Display 85530D 3.REMOVE NO. 2 POWER OUTLET SOCKET ASSEMBLY (w/o USB Charger)

0,0 0,0 false

	Remove in this Direction
	Protective Tape

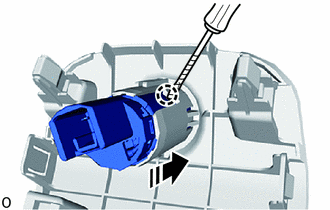

Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the No. 2 power outlet socket assembly as shown in the illustration.

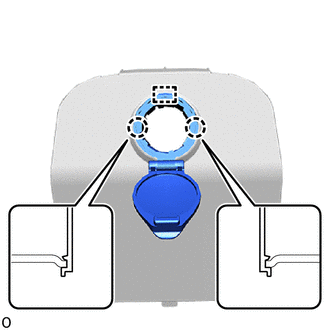

Hide Display 85535E 4.REMOVE NO. 2 POWER OUTLET SOCKET COVER (w/o USB Charger)

Detach the claw and guide to remove the No. 2 power outlet socket cover.

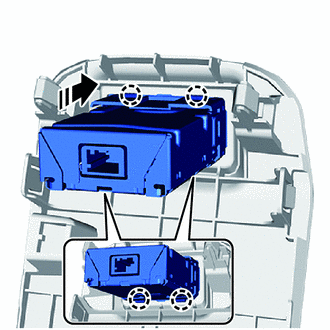

Hide Display 85532 5.REMOVE USB CHARGER SOCKET (w/ USB Charger)

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the USB charger socket as shown in the illustration.
