K121 CVT  SHIFT LEVER  DISASSEMBLY


PROCEDURE

Hide 58848 1.REMOVE SHIFT LEVER HOLE COVER

a.

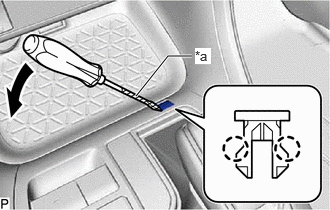

C402690C01
1.417,1 1.75,0.583 1.75,0.583 2,0.583 true 2.031,0.5 2.198,0.667 0.167,0.167 10 true *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lever hole cover from the upper console panel sub-assembly.

NOTICE:

Be careful not to damage the shift lever hole cover and upper console panel sub-assembly.



Hide 35978 2.REMOVE SHIFT POSITION INDICATOR

HINT:

Only perform this procedure when replacement of the shift position indicator is necessary.


a.
C402705

Disengage the clamp to disconnect the wire harness.


b.
C402707

Disengage the 2 claws and 3 screws to remove the shift position indicator from the upper console panel sub-assembly.


Hide 35974 3.REMOVE LOWER POSITION INDICATOR HOUSING

a.
C402709

Disengage the 4 claws and 2 guides to remove the lower position indicator housing from the shift lock control unit assembly.

NOTICE:

Do not damage the lower position indicator housing.
