K121 CVT  SHIFT LEVER POSITION SENSOR  INSPECTION

1.354,0.052 1.771,0.333 0.417,0.281 1.844,0.969 2.323,0.323 true 1.573,0.938 1.917,0.24 true 1.333,0.948 1.104,0.292 true 1.177,0.958 0.75,0.448 true 1.25,1.313 0.76,1.948 true 1.406,1.323 1.104,1.917 true 1.708,1.313 1.865,1.906 true 2,1.323 2.344,1.979 true 0.063,0.063 0.375,0.302 0.313,0.24 10 false *a 0.583,1.969 0.938,2.177 0.354,0.208 10 false DB2 0.823,0.167 1.177,0.375 0.354,0.208 10 false DB1 1.042,1.948 1.24,2.177 0.198,0.229 10 false N 1.792,1.938 2.104,2.135 0.313,0.198 10 false PR 0.448,0.365 0.813,0.594 0.365,0.229 10 false PNB 2.406,0.198 2.604,0.427 0.198,0.229 10 false R 1.948,0.104 2.146,0.333 0.198,0.229 10 false P 2.25,1.969 2.563,2.167 0.313,0.198 10 false +B 1.438,0.063 1.896,0.26 0.458,0.198 10 false C70

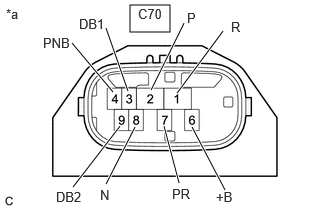

*a	Component without harness connected (Shift Lever Position Sensor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C70-6 (+B) - C70-2 (P)	Shift lever in P	Below 1 Ω
C70-6 (+B) - C70-4 (PNB)		Below 1 Ω
C70-6 (+B) - C70-7 (PR)		Below 1 Ω
C70-6 (+B) - C70-1 (R), 3 (DB1), 8 (N) or 9 (DB2)		10 kΩ or higher
C70-6 (+B) - C70-1 (R)	Shift lever in R	Below 1 Ω
C70-6 (+B) - C70-7 (PR)		Below 1 Ω
C70-6 (+B) - C70-2 (P), 3 (DB1), 4 (PNB), 8 (N) or 9 (DB2)		10 kΩ or higher
C70-6 (+B) - C70-4 (PNB)	Shift lever in N	Below 1 Ω
C70-6 (+B) - C70-8 (N)		Below 1 Ω
C70-6 (+B) - C70-1 (R), 2 (P), 3 (DB1), 7 (PR) or 9 (DB2)		10 kΩ or higher
C70-6 (+B) - C70-3 (DB1)	Shift lever in D	Below 1 Ω
C70-6 (+B) - C70-9 (DB2)		Below 1 Ω
C70-6 (+B) - C70-1 (R), 2 (P), 4 (PNB), 7 (PR) or 8 (N)		10 kΩ or higher
C70-6 (+B) - C70-3 (DB1)	Shift lever in B	Below 1 Ω
C70-6 (+B) - C70-4 (PNB)		Below 1 Ω
C70-6 (+B) - C70-9 (DB2)		Below 1 Ω
C70-6 (+B) - C70-1 (R), 2 (P), 7 (PR) or 8 (N)		10 kΩ or higher

If the result is not as specified, replace the shift lever position sensor.
