RM36D0EC _53 Suspension _083075 TIRE PRESSURE MONITORING _0403360 TIRE PRESSURE WARNING VALVE N

TIRE PRESSURE MONITORING  TIRE PRESSURE WARNING VALVE  DISPOSAL


CAUTION / NOTICE / HINT

HINT:

The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it correctly.


PROCEDURE

Hide 42607 1.DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

a.
C398231C06
0,0 0,0 false
V100145

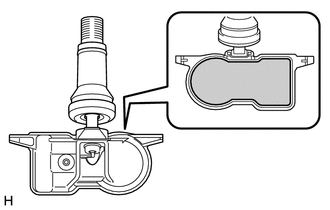

Urethane


Remove the urethane that protects the lithium battery and circuit board.


b.
C399403C07
0.688,0.948 1.458,0.948 1.458,0.948 1.458,1.594 true 0.667,1.76 1.354,1.76 true 1.781,1.74 2.469,1.74 true 0.521,0.844 0.885,1.094 0.365,0.25 10 false *a 0.479,1.688 0.74,1.844 0.26,0.156 10 false *b 2.531,1.635 2.833,1.896 0.302,0.26 10 false *a

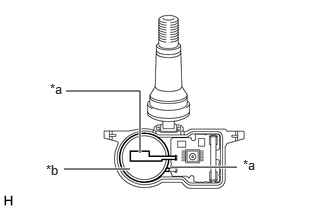

*a Terminal
*b Lithium Battery


Cut the 2 terminals to remove the lithium battery from the tire pressure warning valve and transmitter.
