M20D-FKS ENGINE CONTROL SFI SYSTEM P060609 Control Module Processor (Brake Override System Output Signal) Component Failure
DESCRIPTION
The ECM calculates and compares the accelerator opening angle command value used for control and the value used for monitoring, after corrected by the brake override system.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P060609 | Control Module Processor (Brake Override System Output Signal) Component Failure | Output of the accelerator opening command value after corrected by the brake override system used for control is more excessive than that of the accelerator opening angle command value after corrected by the brake override system repairs used for monitoring (1 trip detection logic). | ECM | Comes on | DTC stored | SAE: P0606 |
MONITOR DESCRIPTION
The ECM calculates and compares the accelerator opening angle command value used for control and the value used for monitoring, after corrected by the brake override system. If the ECM determines there is an excessive output when both the accelerator pedal and brake pedal are depressed in that order, a DTC is stored and the MIL is illuminated.
MONITOR STRATEGY
| Required Sensors/Components | Accelerator pedal sensor assembly
Stop light switch assembly Speed sensor |
| Frequency of Operation | Continuous |

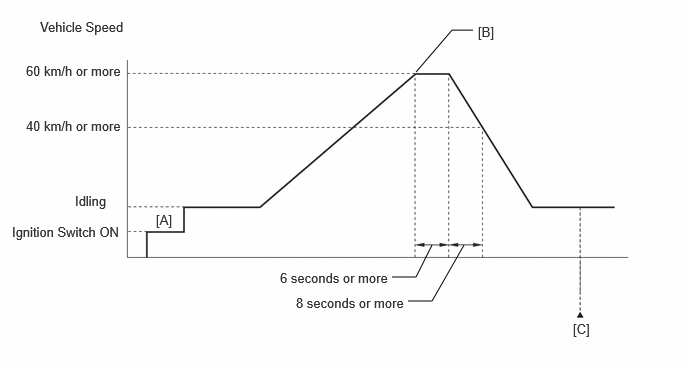

CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
- CAUTION:
-
When carrying out the inspection, use a place where you are able to carry it out safely and also pay close attention to your surroundings.
-
Also, when driving make absolutely sure that all road traffic laws, such as speed limits, are observed.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON [A].
Turn the GTS on.
Start the engine.
Turn the VSC OFF SW to the status of VSC OFF.
Depress the accelerator pedal 1/2 to 3/4 (25° or more) to boost the vehicle speed to 60 km/h (37 mph) or higher [B].
Fully depress the accelerator pedal (to at least 56.542°) and operate the brake pedal with the left foot while maintaining a speed of at least 60 km/h (37 mph) (approximately 6 seconds).
When the vehicle speed begins to decelerate, ease the brake pedal to the point where the brake lights are activated, then keep both the accelerator pedal and brake pedal depressed for at least 8 seconds while maintaining a speed of at least 40 km/h (25 mph).
- HINT:
-
If the engine speed drops to around 1000 rpm when the brake pedal is depressed, it can be determined that the control is normally activated.
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P060609.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system is malfunctioning.
·If the judgment result is INCOMPLETE, perform steps [B] through [C] again.
·[A] to [C]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
CAUTION / NOTICE / HINT
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Wait 1 second or more.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTC P060609 is output A DTC P060609 and other DTCs are output B
A
B
- HINT:
-
After the inspection, perform the following procedure.
- Result:
Proceed to NEXT
NEXT
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs.
- Powertrain > Engine > Clear DTCs
- 50002 372
Turn the ignition switch off and wait for at least 30 seconds.
- Result:
Proceed to NEXT
NEXT
Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTCs are not output A DTC P060609 is output B
A
B
