RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400753 REAR SPOILER A

EXTERIOR PANELS / TRIM  REAR SPOILER  REASSEMBLY


PROCEDURE

Hide 76087C 1.INSTALL REAR SIDE SPOILER PROTECTOR

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When installing the rear side spoiler protector, heat the rear side spoiler LH and rear side spoiler protector using a heat light.



Standard:
Item Temperature
Rear Side Spoiler LH 20 to 30°C (68 to 86°F)
Rear Side Spoiler Protector 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear side spoiler LH excessively.


a.

When reusing the rear side spoiler LH:

i.

Using a heat light, heat the rear side spoiler LH surface.


ii.

Remove any remaining double-sided tape from the rear side spoiler LH.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the rear side spoiler LH with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new rear side spoiler LH.





b.

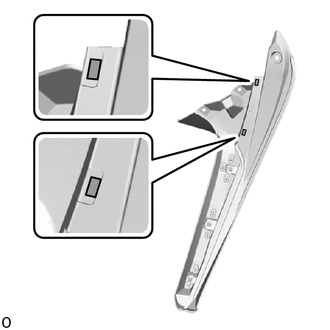

B525812
0,0 0,0 false
V100144

Primer


Apply primer to the rear side spoiler LH on the installation area of the rear side spoiler protector using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear side spoiler protector has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Using a heat light, heat the rear side spoiler LH and a new rear side spoiler protector.


e.

Remove the release paper from the rear side spoiler protector.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



f.
B525813
0.938,2.083 1.021,2.26 1.021,2.26 1.188,2.26 true 0.979,0.583 1.083,0.375 1.083,0.375 1.25,0.375 true 1.281,0.302 1.51,0.469 0.229,0.167 10 true *a 1.26,2.167 1.438,2.344 0.177,0.177 10 true *a
*a Mark-off Line


Install the 2 rear side spoiler protectors in the positions shown in the illustration.

NOTICE:

The application strength of the rear side spoiler protector will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:

Apply pressure so that it does not lift up from the rear side spoiler LH.



Hide 76876C 2.INSTALL REAR SPOILER NO. 4 PROTECTOR

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When installing the rear spoiler No. 4 protector, heat the rear side spoiler LH and rear spoiler No. 4 protector using a heat light.



Standard:
Item Temperature
Rear Side Spoiler LH 20 to 30°C (68 to 86°F)
Rear Spoiler No. 4 Protector 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear side spoiler LH and rear spoiler No. 4 protector excessively.


a.

When reusing the rear side spoiler LH:

i.

Using a heat light, heat the rear side spoiler LH surface.


ii.

Remove any remaining double-sided tape from the rear side spoiler LH.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the rear side spoiler LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new rear side spoiler sub-assembly LH.





b.
B525810
1.052,1.417 1.385,1.417 true 1.469,1.354 1.719,1.563 0.25,0.208 10 true *a
*a Mark-off Line
V100144

Primer


Apply primer to the rear side spoiler LH on the installation area of the rear spoiler No. 4 protector using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear spoiler No. 4 protector has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Using a heat light, heat the rear side spoiler LH and a new rear spoiler No. 4 protector.


e.

Remove the release paper from the rear spoiler No. 4 protector excessively.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



f.

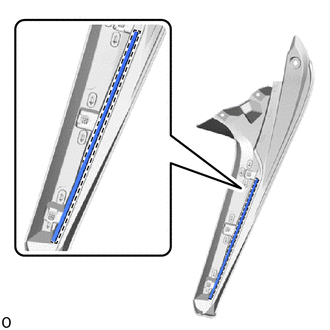

B525811
1.063,1.365 1.396,1.365 1.396,1.365 1.396,1.615 true 1.323,1.615 1.635,1.813 0.313,0.198 10 false *a
*a Mark-off Line


Install the rear spoiler No. 4 protector in the position shown in the illustration.

NOTICE:

The application strength of the rear spoiler No. 4 protector will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:

Apply pressure so that it does not lift up from the rear side spoiler LH.



Hide 76873B 3.INSTALL REAR SPOILER NO. 2 PROTECTOR

HINT:

When installing the rear spoiler No. 2 protector, heat the rear spoiler and rear spoiler No. 2 protector using a heat light.


Standard:
Item Temperature
Rear Spoiler 20 to 30°C (68 to 86°F)
Rear Spoiler No. 2 Protector 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear spoiler and rear spoiler No. 2 protector excessively.


a.

When reusing the rear spoiler:

i.

Using a heat light, heat the rear spoiler surface.


ii.

Remove any remaining double-sided tape from the rear spoiler.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the rear spoiler with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new rear spoiler LH.





b.

Apply primer to the rear spoiler on the installation area of the rear spoiler No. 2 protector using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear spoiler No. 2 protector has been attached.



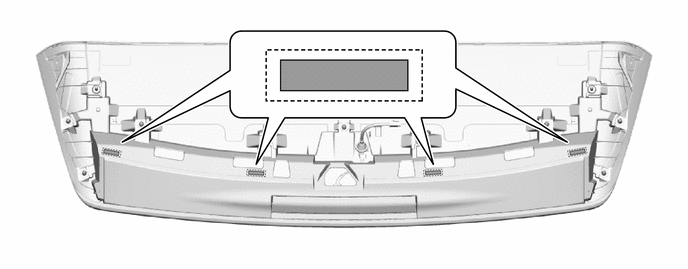

B585301
2.594,0.792 2.76,0.635 false 2.51,0.823 2.823,1.021 0.313,0.198 10 false *a
*a Mark-off Line - -
V100144

Primer - -



c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Using a heat light, heat the rear spoiler and a new rear spoiler No. 2 protector.


e.

Remove the release paper from the rear spoiler No. 2 protector.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



f.

Install the 4 rear spoiler No. 2 protectors in the position shown in the illustration.

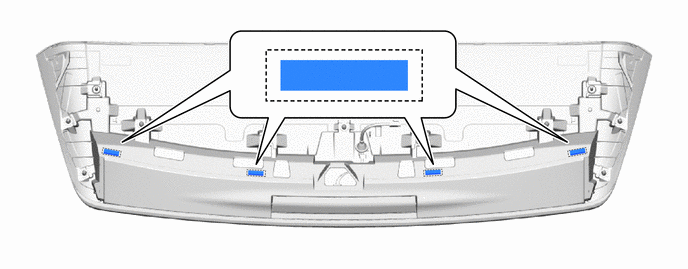

B585302
2.594,0.792 2.76,0.635 false 2.51,0.823 2.823,1.021 0.313,0.198 10 false *a
*a Mark-off Line - -


NOTICE:

The application strength of the rear spoiler No. 2 protectors will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:

Apply pressure so that it does not lift up from the rear spoiler.



Hide 76872A 4.INSTALL REAR SPOILER NO. 1 PROTECTOR

HINT:

When installing the rear spoiler No. 1 protector, heat the rear spoiler and rear spoiler No. 1 protector using a heat light.


Standard:
Item Temperature
Rear Spoiler 20 to 30°C (68 to 86°F)
Rear Spoiler No. 1 Protector 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear spoiler and rear spoiler No. 1 protector excessively.


a.

When reusing the rear spoiler:

i.

Using a heat light, heat the rear spoiler surface.


ii.

Remove any remaining double-sided tape from the rear spoiler.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the rear spoiler with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new rear spoiler LH.





b.

Apply primer to the rear spoiler on the installation area of the rear spoiler No. 1 protector using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear spoiler No. 1 protector has been attached.



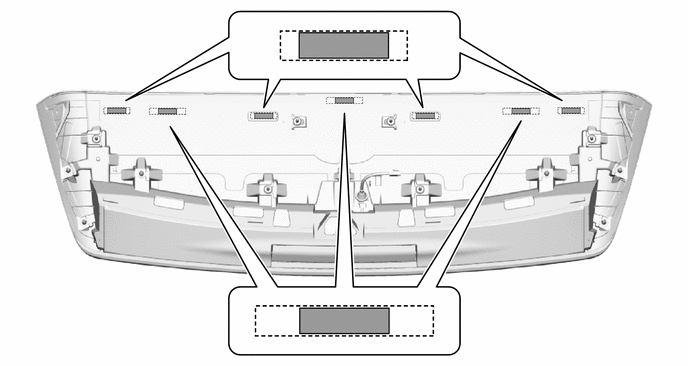

B585298
2.708,0.5 2.906,0.438 false 2.552,3.5 2.646,3.302 false 2.521,0.469 2.833,0.667 0.313,0.198 10 false *a 2.448,3.51 2.76,3.708 0.313,0.198 10 false *a
*a Mark-off Line - -
V100144

Primer - -



c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Using a heat light, heat the rear spoiler and a new rear spoiler No. 1 protector.


e.

Remove the release paper from the rear spoiler No. 1 protector.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



f.

Install the 7 rear spoiler No. 1 protectors in the position shown in the illustration.

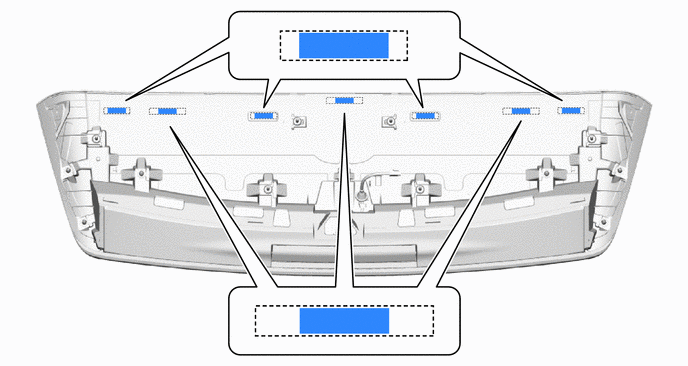

B585299
2.708,0.5 2.906,0.438 false 2.552,3.5 2.646,3.302 false 2.521,0.469 2.833,0.667 0.313,0.198 10 false *a 2.448,3.51 2.76,3.708 0.313,0.198 10 false *a
*a Mark-off Line - -


NOTICE:

The application strength of the rear spoiler No. 1 protector will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:

Apply pressure so that it does not lift up from the rear spoiler
