EXTERIOR PANELS / TRIM REAR SPOILER DISASSEMBLY
PROCEDURE
81570
1.REMOVE CENTER STOP LIGHT ASSEMBLY
81935D
2.REMOVE CENTER STOP LIGHT CORD ASSEMBLY
76872A

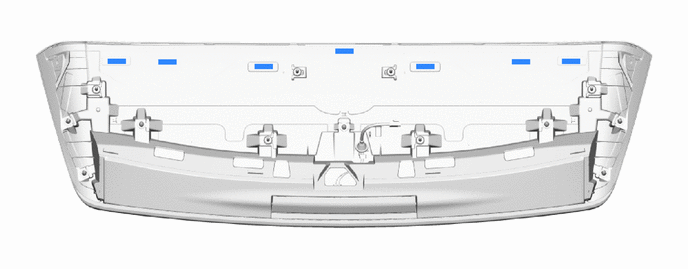

3.REMOVE REAR SPOILER NO. 1 PROTECTOR
- HINT:
-
When removing the rear spoiler No. 1 protector, if the double-sided tape is difficult to remove, heat the adhesive of the rear spoiler sub-assembly and rear spoiler No. 1 protector using a heat light.
| Item | Temperature |
|---|---|
| Rear Spoiler Sub-assembly | 20 to 30°C (68 to 86°F) |
| Rear Spoiler No. 1 Protector | 20 to 30°C (68 to 86°F) |
- CAUTION:
- ·
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b*a Heated Part *b Heat Light
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the rear spoiler sub-assembly and rear spoiler No. 1 protector excessively.
Remove the 7 rear spoiler No. 1 protectors.
76873B

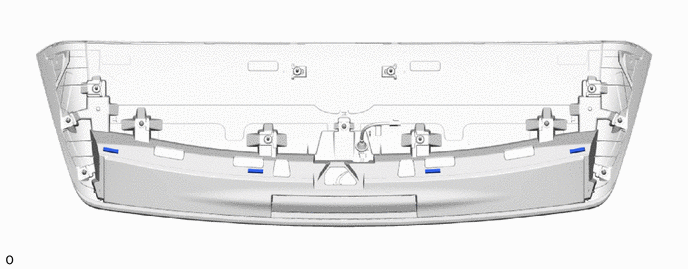

4.REMOVE REAR SPOILER NO. 2 PROTECTOR
- HINT:
-
When removing the rear spoiler No. 2 protector, if the double-sided tape is difficult to remove, heat the adhesive of the rear spoiler sub-assembly and rear spoiler No. 2 protector using a heat light.
| Item | Temperature |
|---|---|
| Rear Spoiler Sub-assembly | 20 to 30°C (68 to 86°F) |
| Rear Spoiler No. 2 Protector | 20 to 30°C (68 to 86°F) |
- CAUTION:
- ·
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the rear spoiler sub-assembly and rear spoiler No. 2 protector excessively.
Remove the 4 rear spoiler No. 2 protectors.
76876C

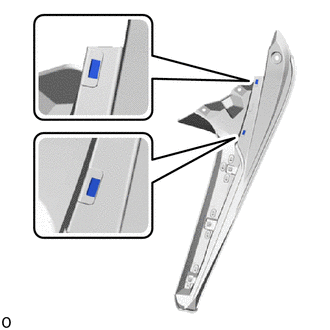

5.REMOVE REAR SPOILER NO. 4 PROTECTOR
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
·When removing the rear spoiler No. 4 protector, if the double-sided tape is difficult to remove, heat the adhesive of the rear side spoiler sub-assembly LH and rear spoiler No. 4 protector using a heat light.
| Item | Temperature |
|---|---|
| Rear Side Spoiler Sub-assembly LH | 20 to 30°C (68 to 86°F) |
| Rear Spoiler No. 4 Protector | 20 to 30°C (68 to 86°F) |
- CAUTION:
- ·
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the rear side spoiler sub-assembly LH and rear spoiler No. 4 protector excessively.
Remove the rear spoiler No. 4 protector.
76087C

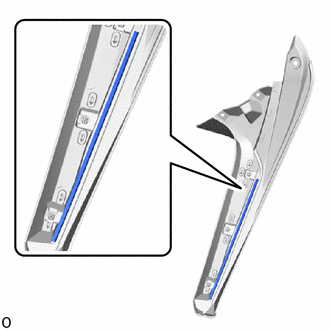

6.REMOVE REAR SIDE SPOILER PROTECTOR
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
·When removing the rear side spoiler protector, if the double-sided tape is difficult to remove, heat the adhesive of the rear side spoiler sub-assembly LH and rear side spoiler protector using a heat light.
| Item | Temperature |
|---|---|
| Rear Side Spoiler Sub-assembly LH | 20 to 30°C (68 to 86°F) |
| Rear Side Spoiler Protector | 20 to 30°C (68 to 86°F) |
- CAUTION:
- ·
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the rear side spoiler sub-assembly LH and rear side spoiler protector excessively.
Remove the 2 rear side spoiler protectors.
